Liemke Merlin-35 Thermal Optic NEW OLD STOCK

Description:
Liemke Merlin-35 Thermal Optics NEW OLD STOCK

WOOLLEY SHOOTING ITEM NUMBER 21324

Condition: New — New Old Stock, Warranty Expired

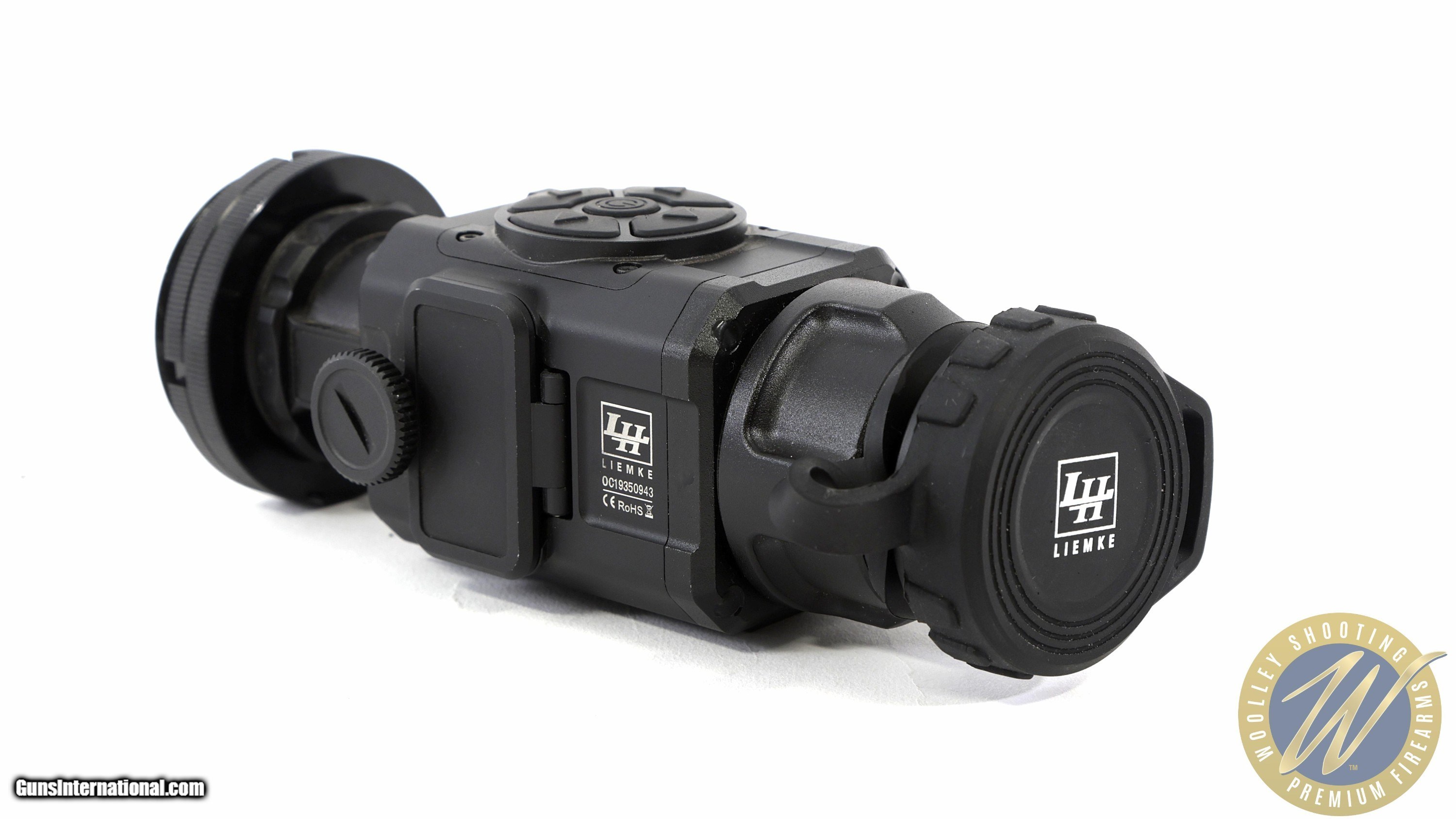

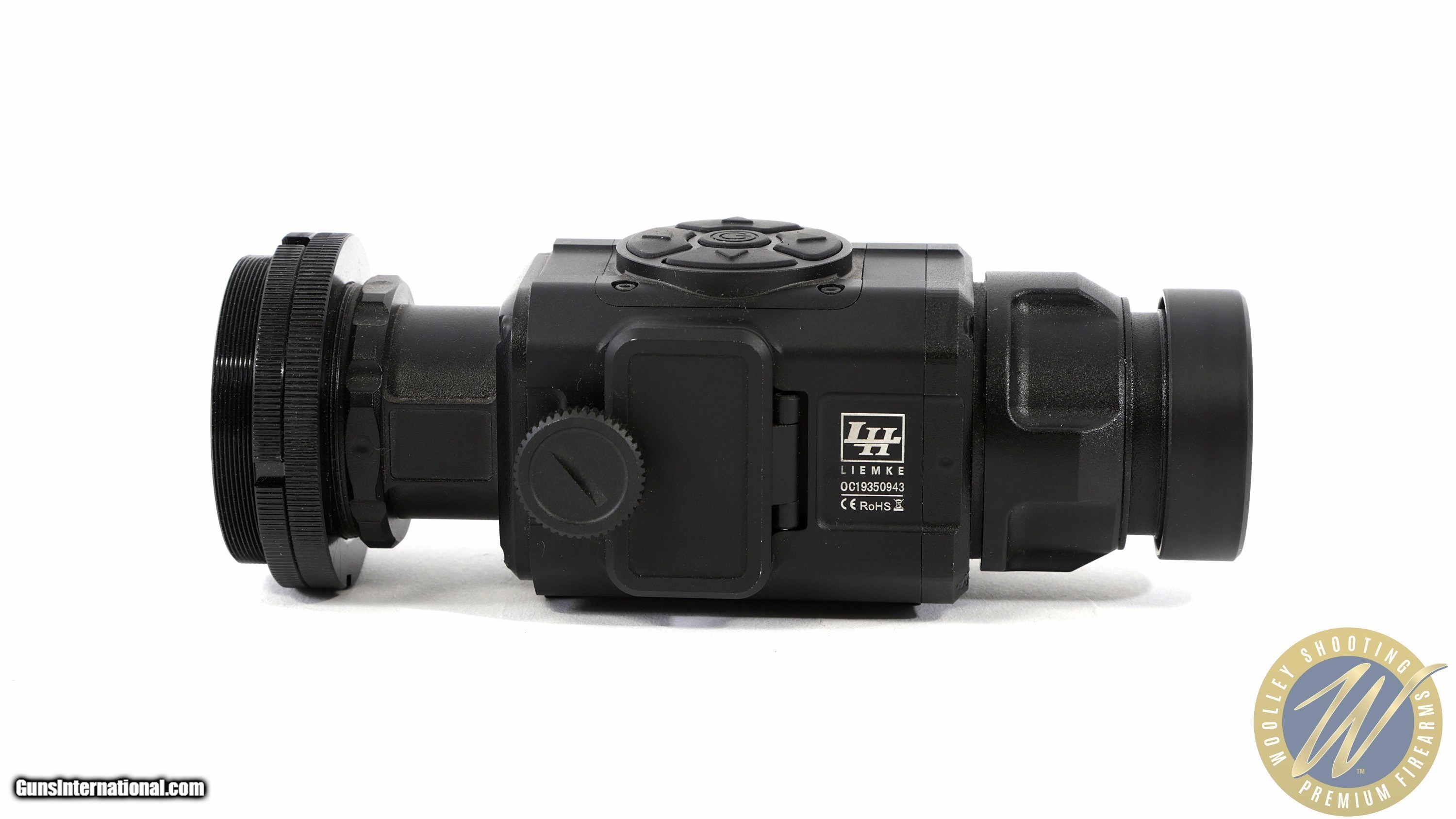

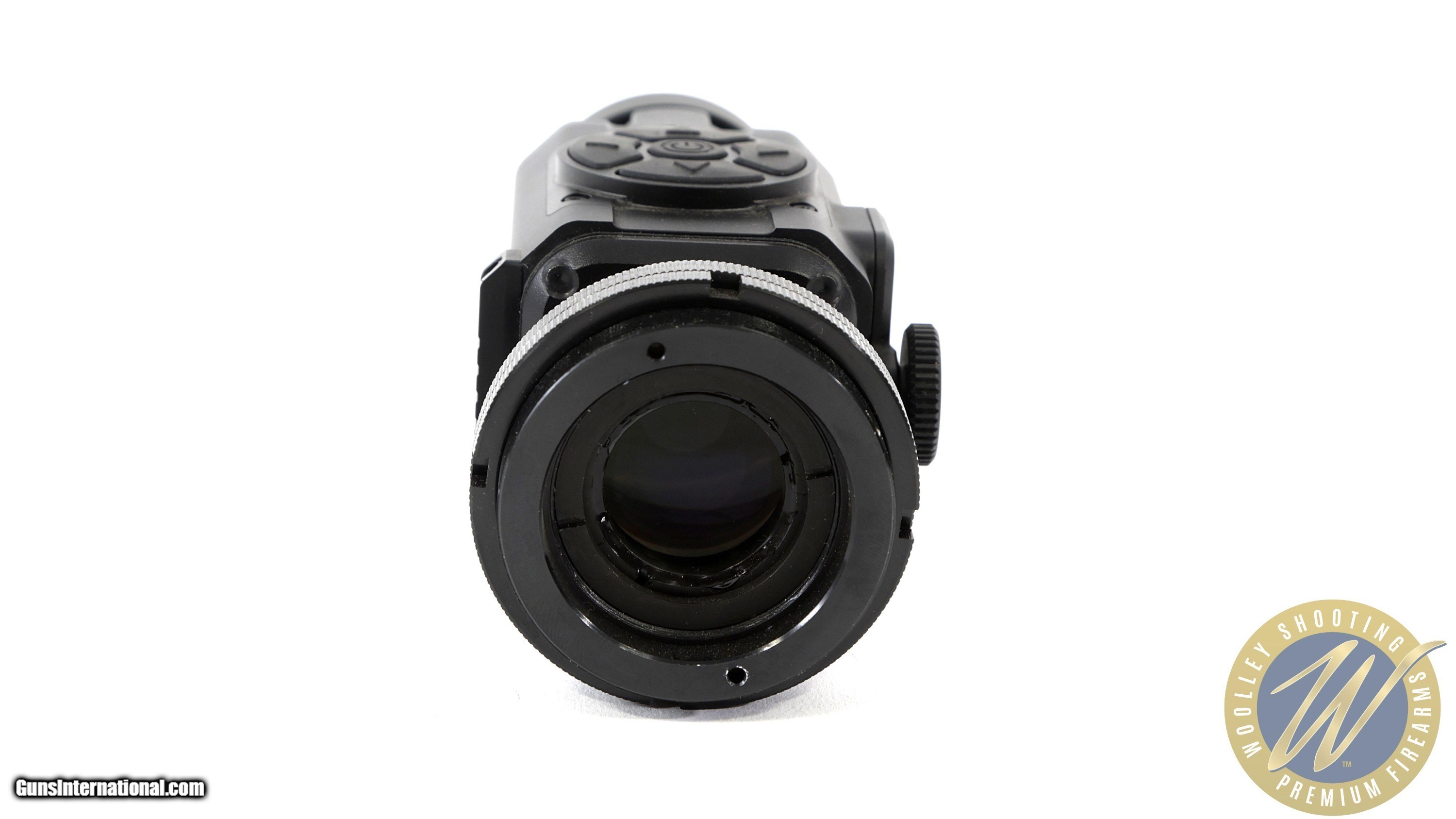

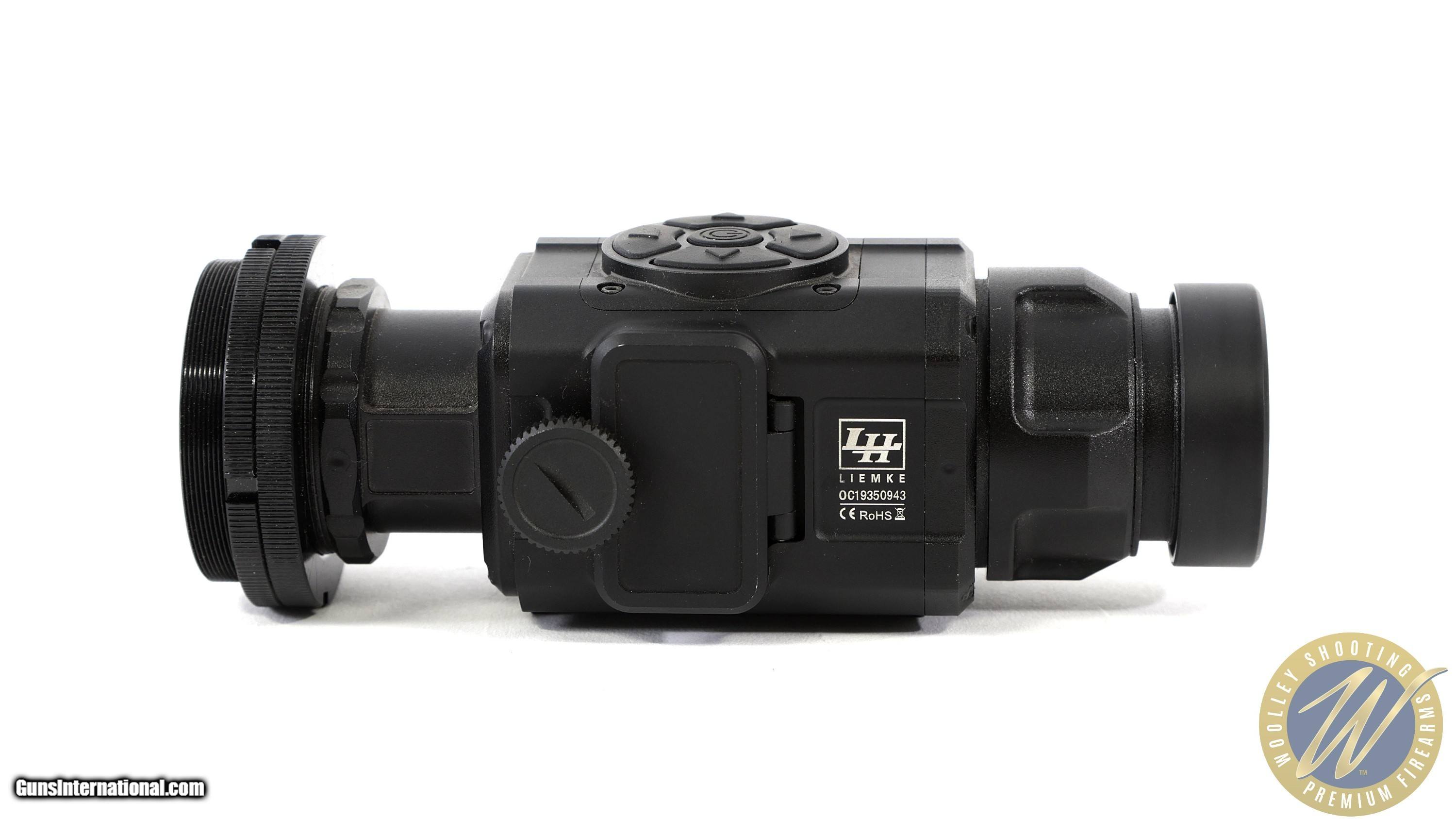

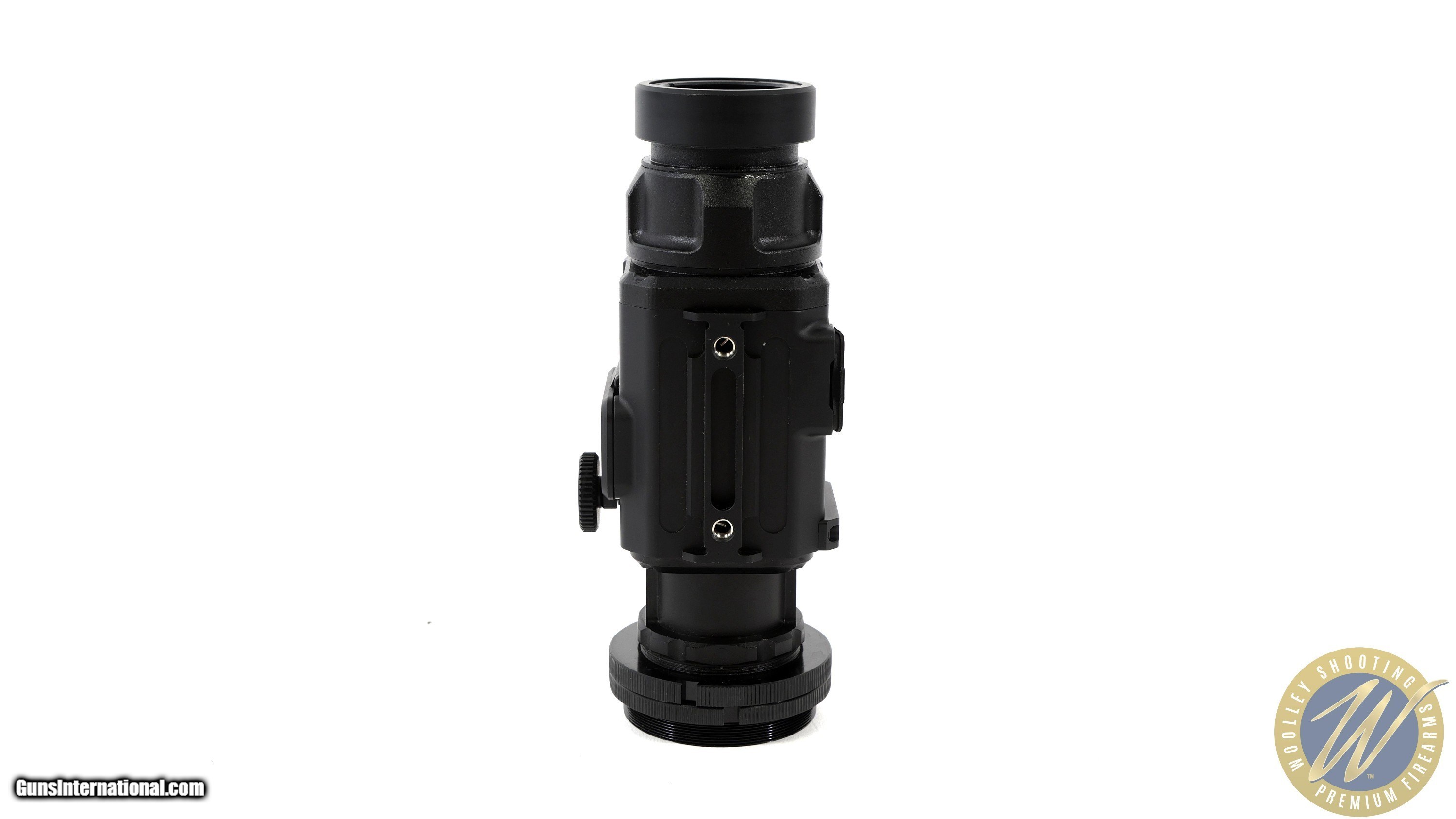

The Liemke Merlin-35 (2020) is a multifunctional thermal imaging optic that operates as both a clip-on attachment to a daytime riflescope and a standalone handheld thermal monocular — built around a 384 × 288 VOx uncooled detector with 17µm pixel pitch, a manually-focusable 35mm germanium objective, and a 1,024 × 768 OLED display housed in a robust aluminum body. The 35mm objective offers a 19m field of view at 100m and a detection range of up to 1,235m, with onboard 2× / 4× digital zoom, 2.4 GHz Wi-Fi for live video streaming and recording via the Liemke CAM802 mobile app, and a 4-pole jack video-out. This unit is unused factory New Old Stock; Liemke's 3-year warranty has lapsed due to shelf age, and a clamp adapter (sold separately) is required to mount the device to a riflescope.

Model: Merlin-35 (2020)

Type: Multifunctional thermal imaging clip-on / pre-mounted device; also usable as a handheld thermal monocular

Serial Number: OC19350943

Sensor: 17µm VOx uncooled microbolometer; 384 × 288 pixel resolution; 50 Hz frame rate

Display: 1,024 × 768 OLED

Optic: 35mm germanium objective; manual focus (5m minimum focus distance); 1× optical magnification; 2× / 4× digital zoom; field of view 10.6° × 8° (19m at 100m); dioptre adjustment -5D to +4D

Detection Range: Up to 1,235m

Housing: Aluminum body; IP67 dust- and water-rated; glove-operable controls; shock resistance 1,200 g/ms

Power: 2× CR123(A) (3.0V or 3.7V); up to 4 hours runtime; external power and charging via Micro-USB (5V)

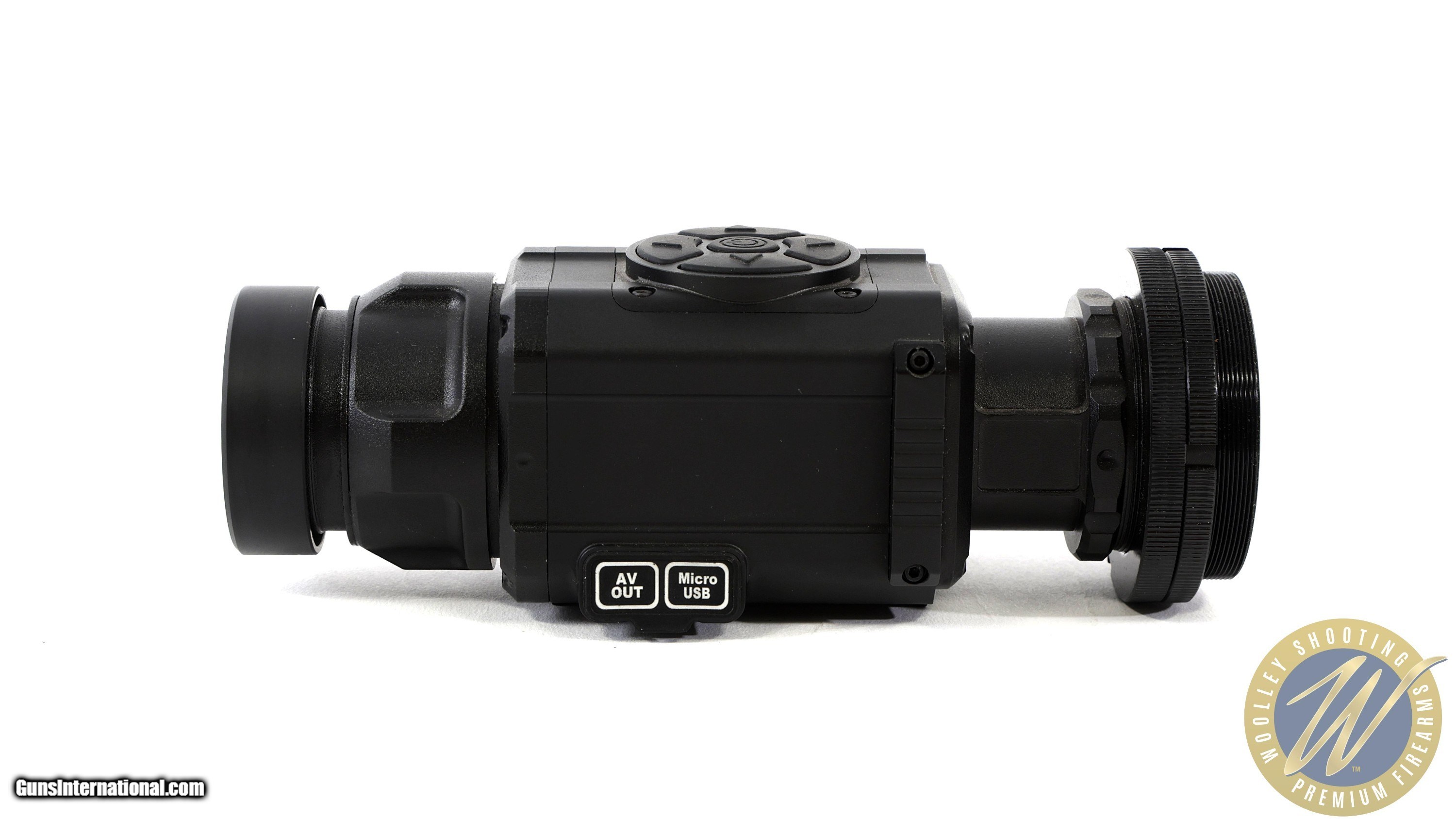

Connectivity: Micro-USB interface; 4-pole jack video-out; 2.4 GHz Wi-Fi (802.11 b/g/n) for streaming and recording via the Liemke CAM802 mobile app

Mounting Interface: Threaded interface for clamping adapter; adapter ring for clamping adapter included (clamp adapter sold separately)

Accessories: Adapter ring for clamping adapter; Micro-USB cable; 4-pole jack-to-SDI video cable; cleaning cloth

Specifications:
(factory specs)

- Detector: 17µm VOx uncooled microbolometer

- Detector Resolution: 384 × 288 pixels

- Pixel Pitch: 17 µm

- Frame Rate: 50 Hz

- Display: 1,024 × 768 OLED

- Objective Lens: 35mm germanium, manual focus

- Minimum Focus Distance: 5m

- Optical Magnification: 1×

- Digital Zoom: 2× / 4×

- Field of View: 10.6° × 8° (19m at 100m)

- Detection Range: Up to 1,235m

- Dioptre Adjustment: -5D to +4D

- Battery: 2× CR123(A) (3.0V or 3.7V)

- Battery Life: Up to 4 hours

- External Power: 5V via Micro-USB

- USB: Micro-USB

- Video Output: 4-pole jack socket

- Wi-Fi: 2.4 GHz, 802.11 b/g/n

- IP Rating: IP67

- Recommended Operating Temperature: -10°C to +50°C (14°F to 122°F)

- Shock Resistance: 1,200 g/ms

- Dimensions: 154mm × 61mm × 58mm (6.1" × 2.4" × 2.3")

- Weight: Approx. 1 lb 0 oz (450g, without battery)

Price: $4,444
