Liemke Merlin-13 Thermal Imaging Clip-On New Old Stock

Description:

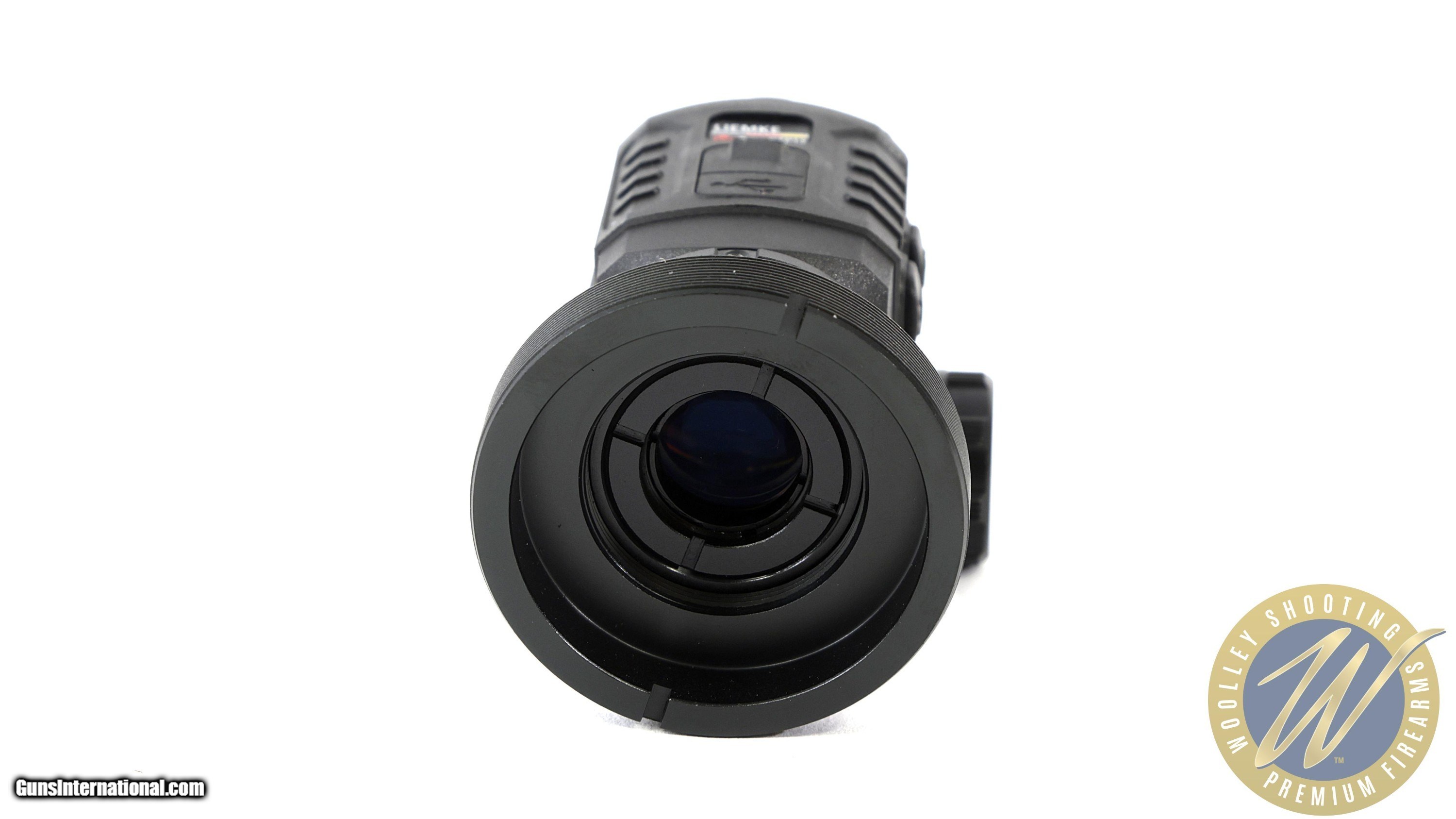

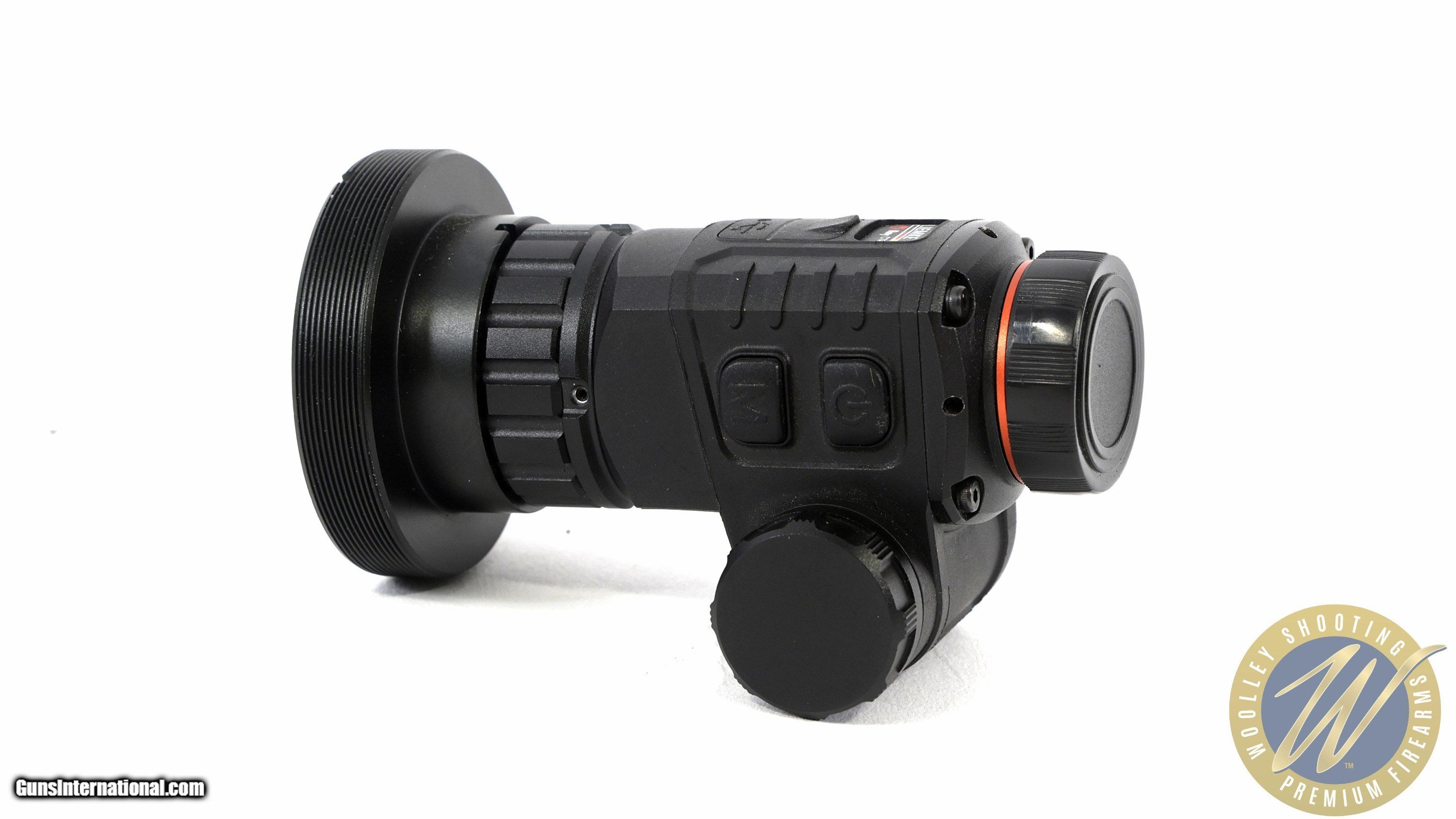

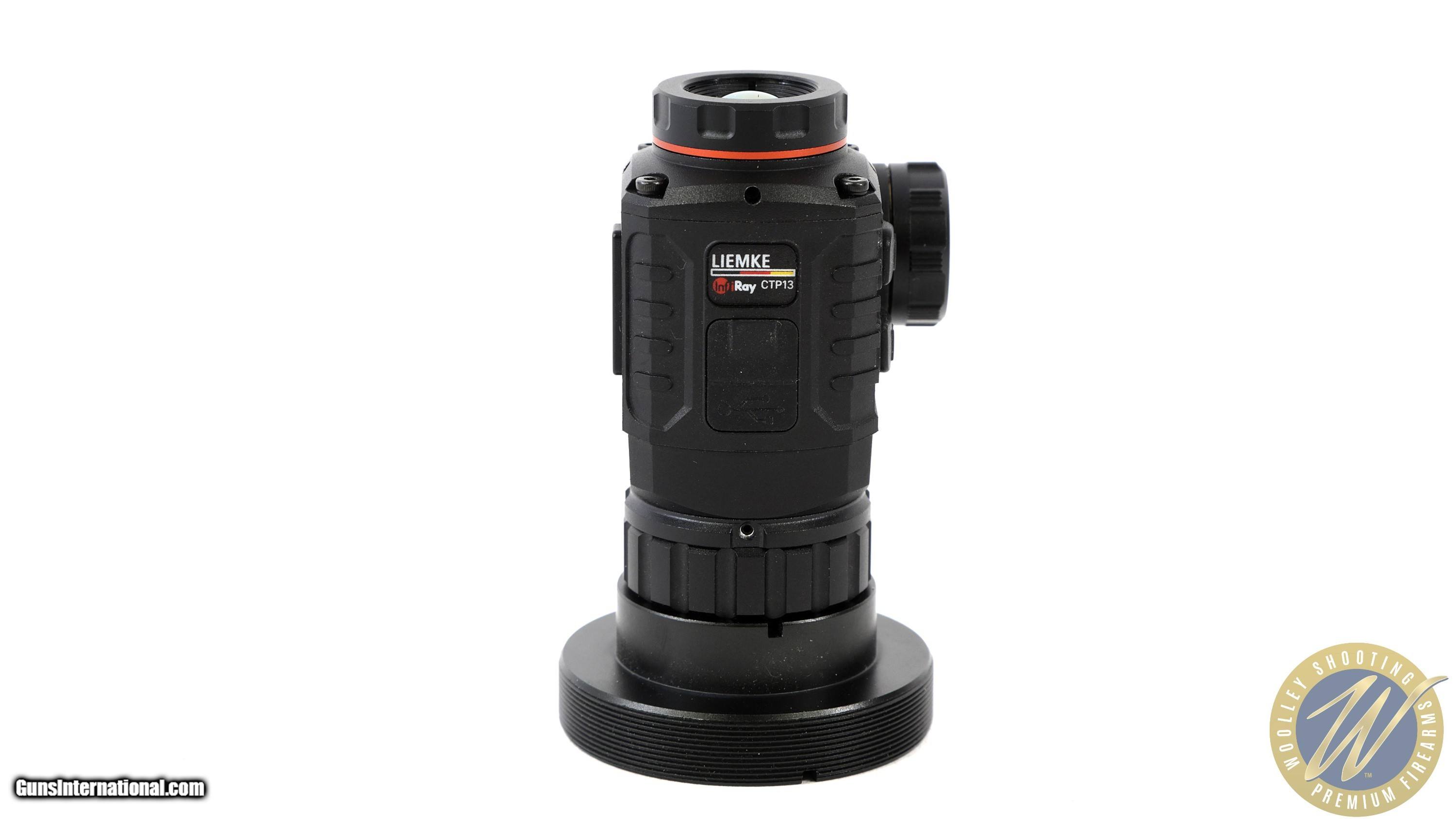

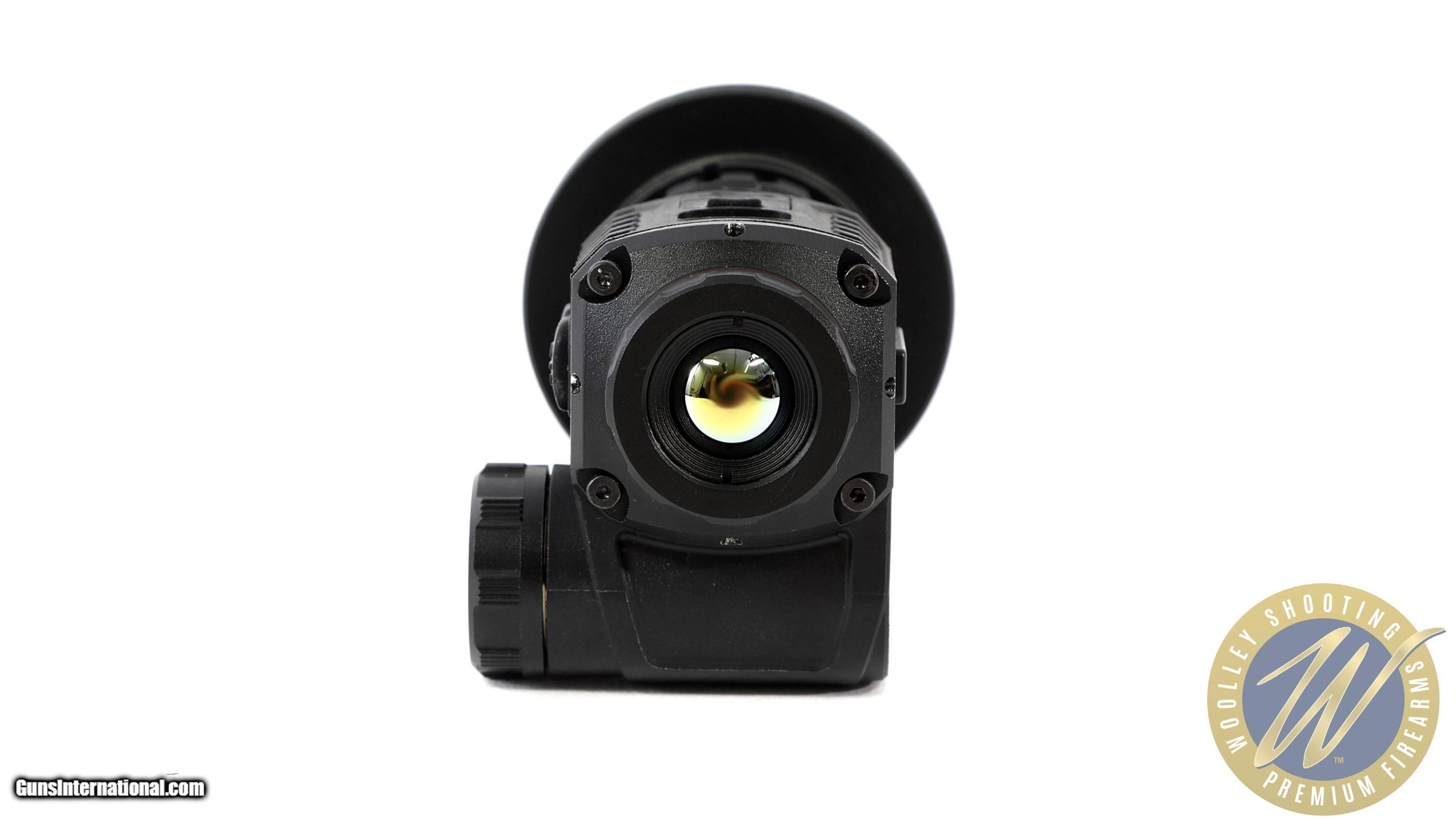

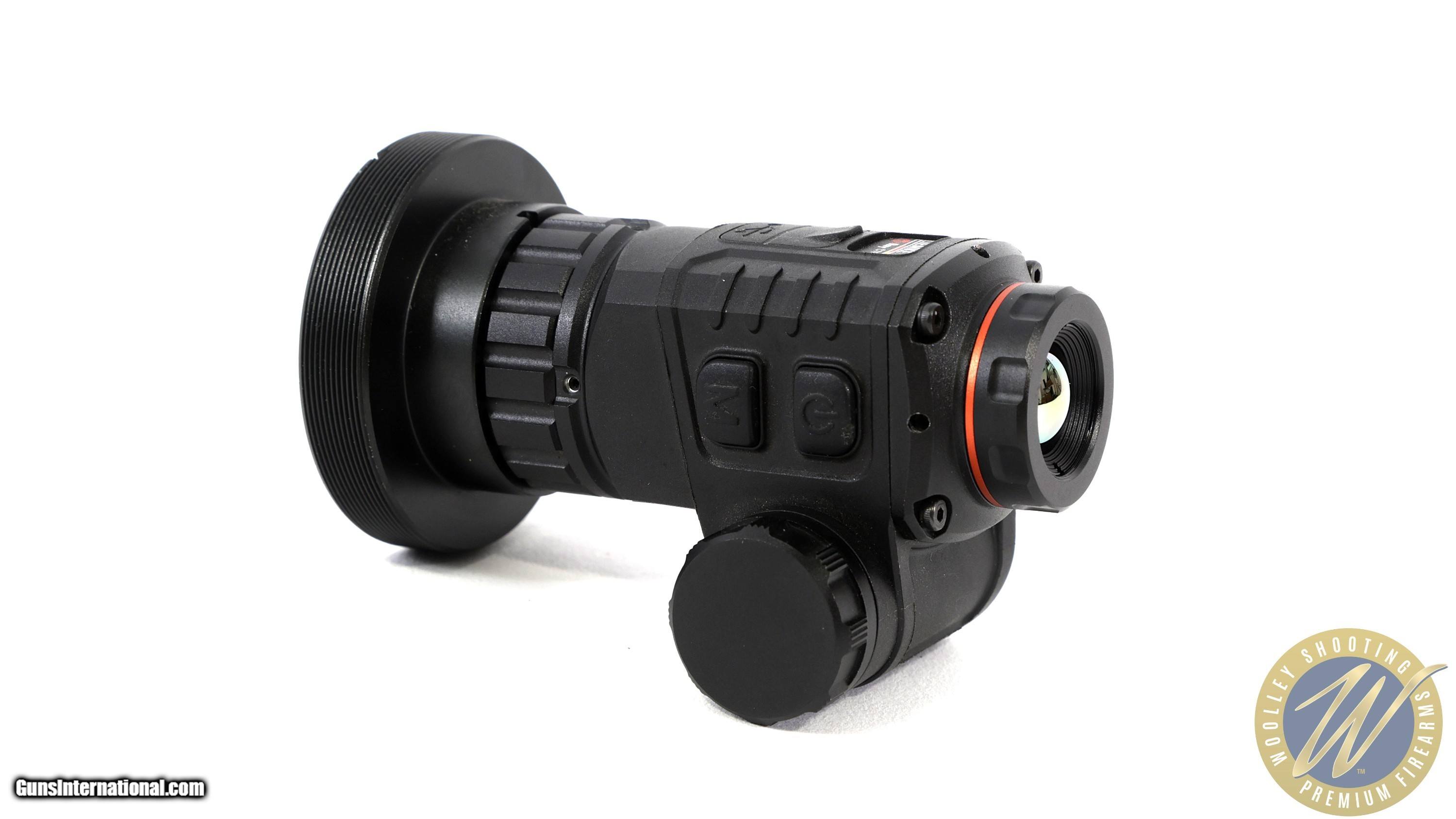

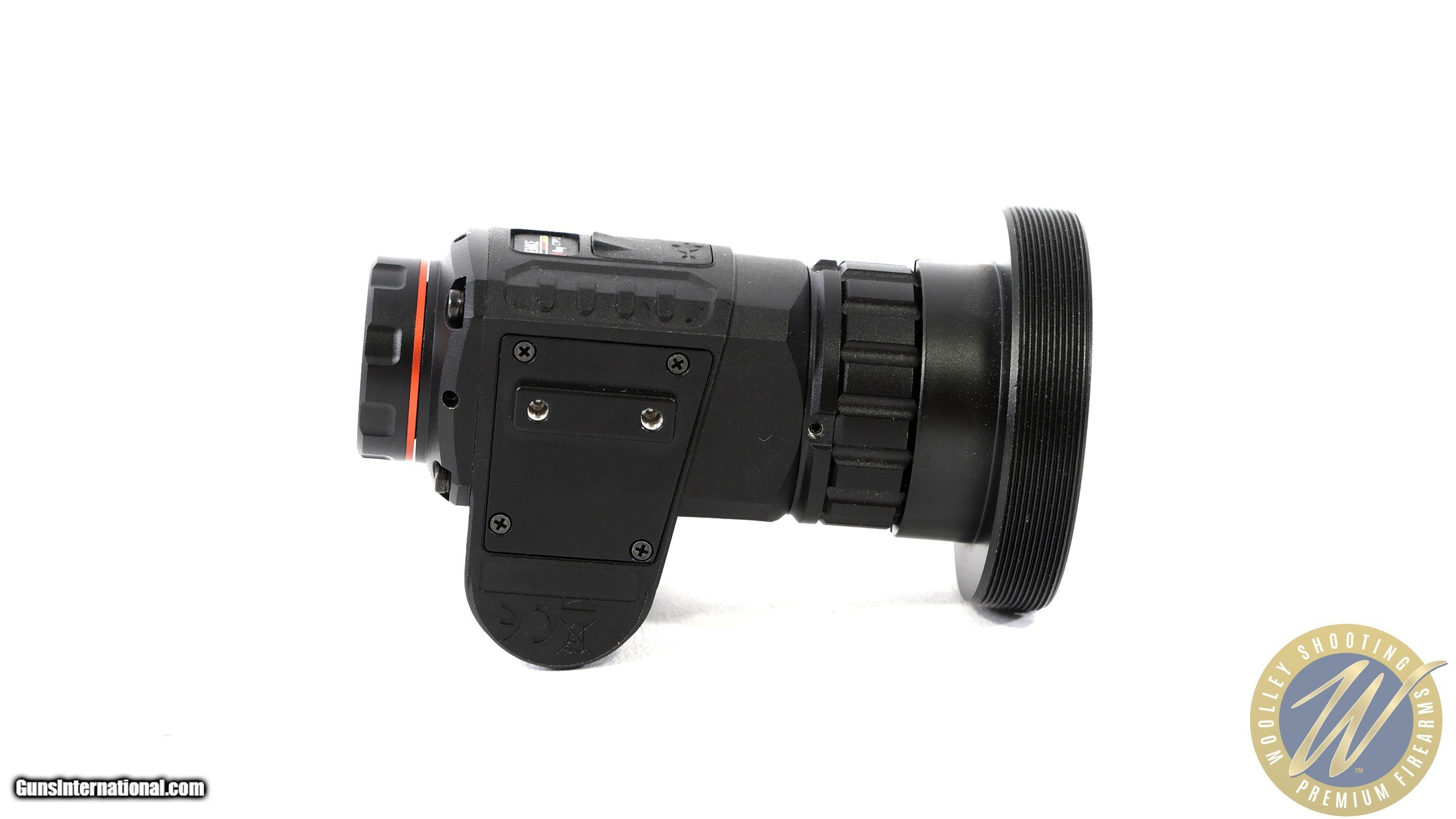

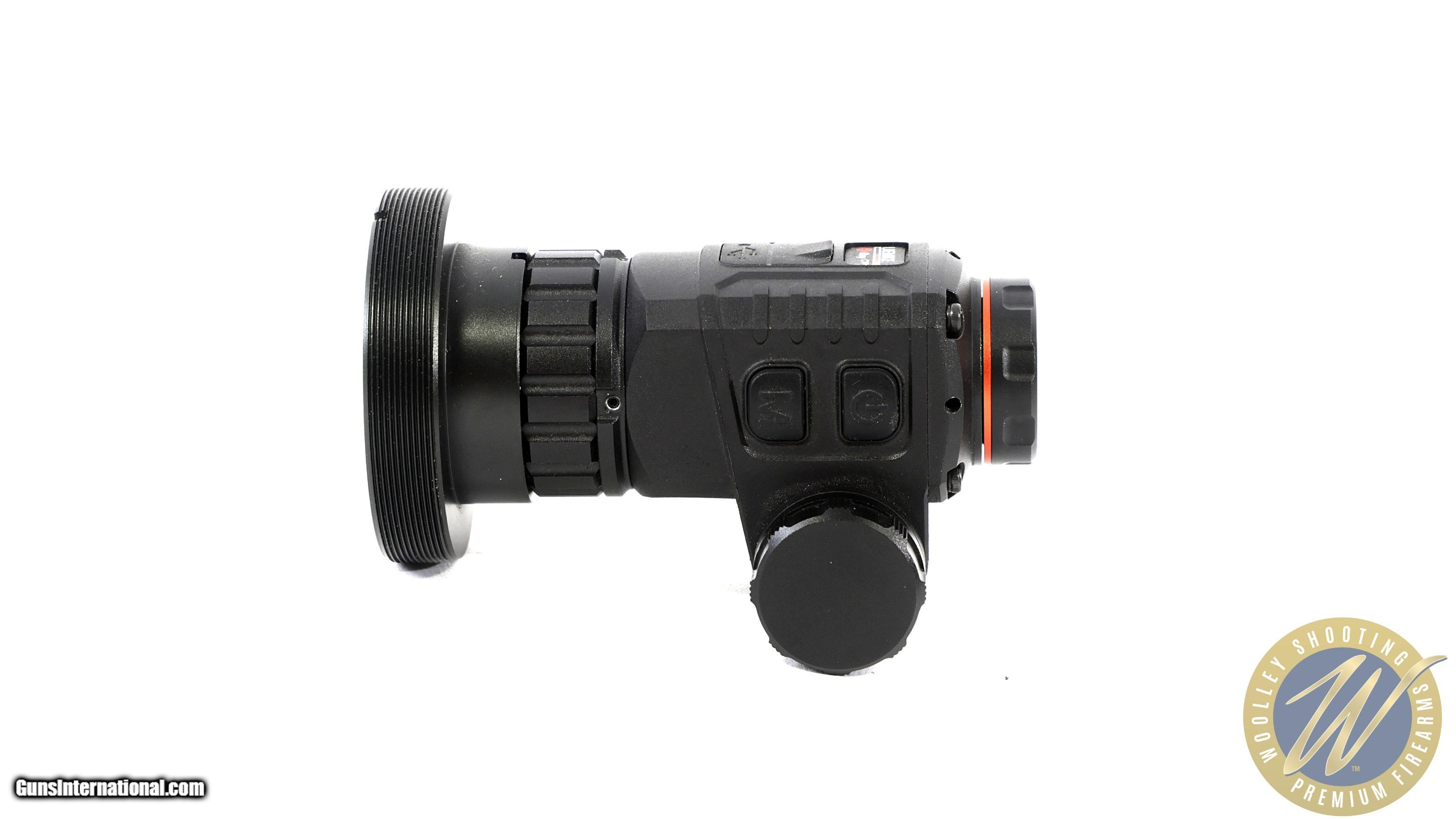

Liemke Merlin-13 Thermal Imaging Clip-On New Old Stock

WOOLLEY SHOOTING ITEM NUMBER 21323

Condition: New — New Old Stock, Factory Sealed, Warranty Expired

The Liemke Merlin-13 is an ultra-compact multifunctional thermal imaging clip-on built around a 12µm VOx ceramic detector paired with a 1,024 × 768 OLED display and an IP67-rated housing — at a system weight of only 130g, it remains one of the smallest and lightest thermal clip-ons ever produced. The device functions as both a clip-on for a daytime riflescope and a standalone handheld thermal monocular, with a detection range of up to 650m on a 1.7m × 0.5m target. This unit is unused factory New Old Stock; Liemke's 3-year warranty has lapsed due to shelf age, and a clamp adapter (sold separately) is required to mount the device to a riflescope.

Model: Merlin-13

Type: Multifunctional thermal imaging clip-on / pre-mounted device; also usable as a handheld thermal monocular

Sensor: 12µm VOx ceramic microbolometer; 256 × 192 pixel resolution; NETD ≤ 50 mK; 50 Hz frame rate

Display: 0.39" OLED; 1,024 × 768 pixel resolution

Optic: 13mm fixed-focus objective; 1× magnification; field of view 13.5° × 10.1° (24m × 17.7m at 100m)

Detection Range: Up to 650m on a 1.7m × 0.5m target, P(n) = 99%

Housing: IP67 dust- and water-rated; glove-operable controls

Power: CR123 (3.7V) × 1; up to 3.5 hours runtime; USB Type-C interface for firmware updates and external power

Mounting Interface: M30 × 1.0 eyepiece thread; M30 × 1 to M52 × 0.75 thread adapter included for use with a clamp adapter (clamp adapter sold separately)

Accessories: M30 × 1 to M52 × 0.75 thread adapter; 1× CR123 battery

Specifications:
(factory specs)

- Detector: 12µm VOx ceramic microbolometer

- Detector Resolution: 256 × 192 pixels

- NETD: ≤ 50 mK

- Frame Rate: 50 Hz

- Display: 0.39" OLED, 1,024 × 768 pixels

- Objective Lens: 13mm, fixed focus

- Magnification: 1×

- Field of View: 13.5° × 10.1° (24m × 17.7m at 100m)

- Detection Range: Up to 650m (1.7m × 0.5m target, P(n) = 99%)

- Battery: CR123 (3.7V) × 1

- Battery Life: Up to 3.5 hours

- USB: Type-C

- Eyepiece Interface: M30 × 1.0

- IP Rating: IP67

- Operating Temperature: -20°C to +50°C (-4°F to +122°F)

- Dimensions: 79mm × 52mm × 46mm

- Weight: Approx. 4.6 oz / 130g
