Antique U.S. SPRINGFIELD ARMORY M1816 Percussion Conversion Musket BAYONET Flintlock to Percussion U.S. Military LONGARM w/ Bayonet

Description:
Antique U.S. SPRINGFIELD ARMORY M1816 Percussion Conversion Musket BAYONET

Flintlock to Percussion U.S. Military LONGARM w/ Bayonet

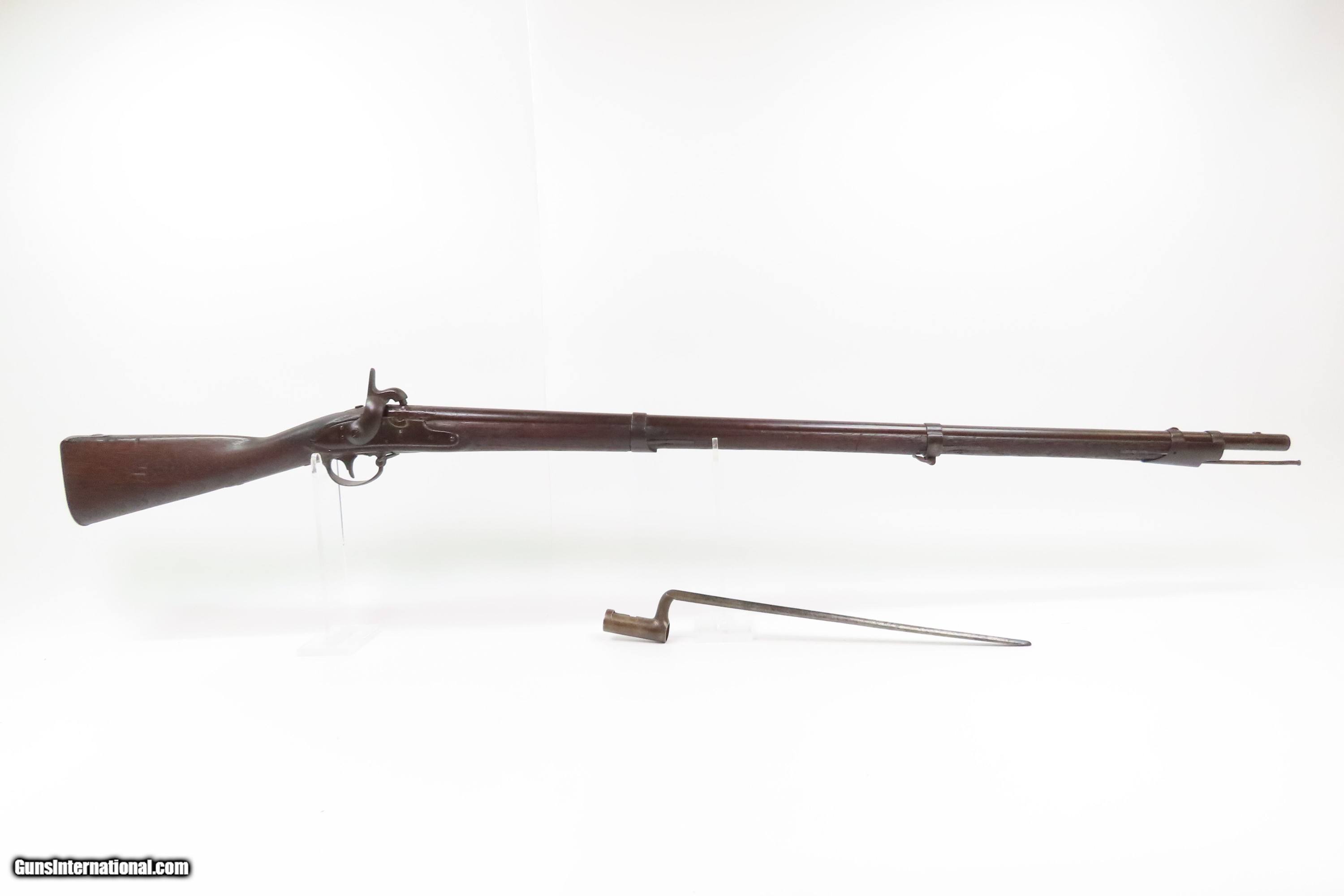

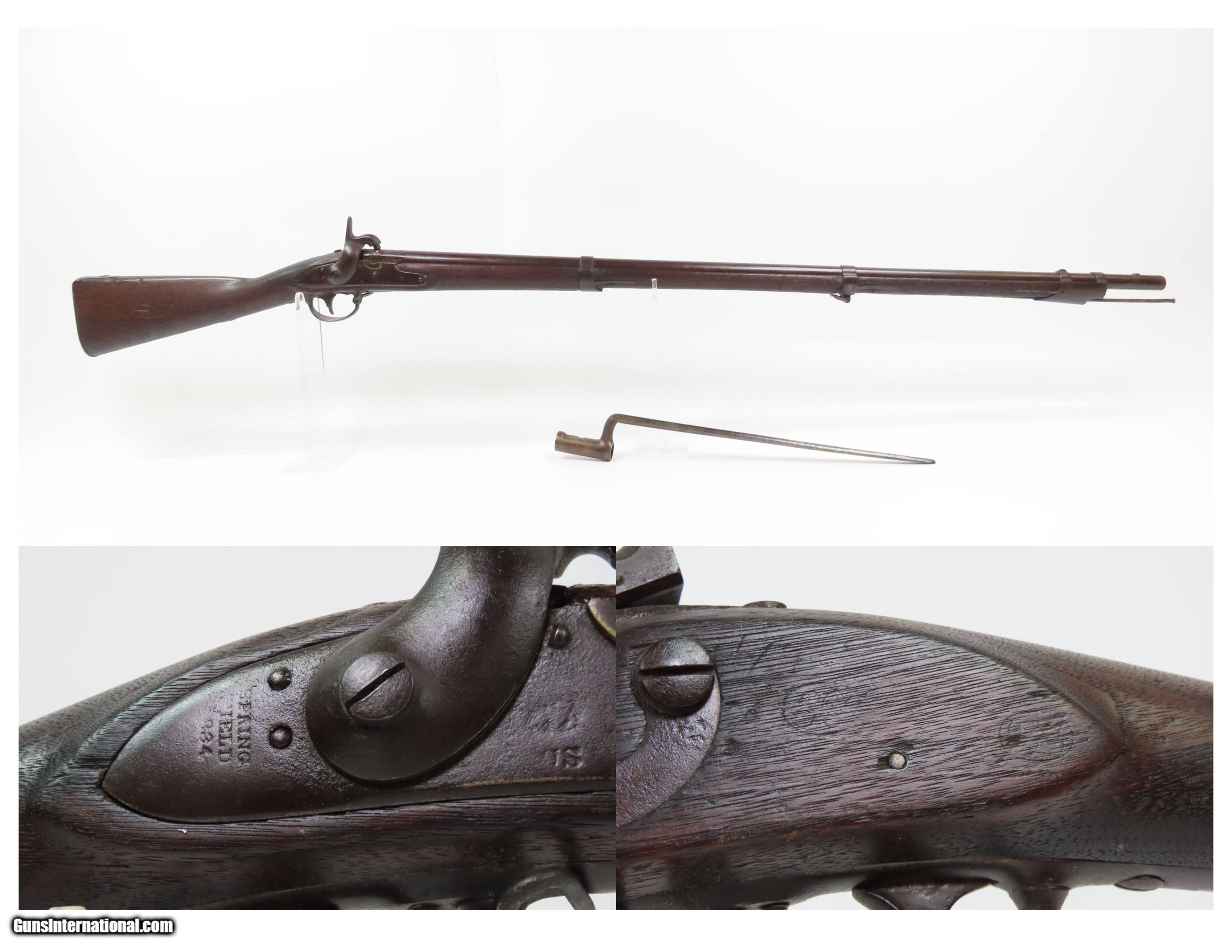

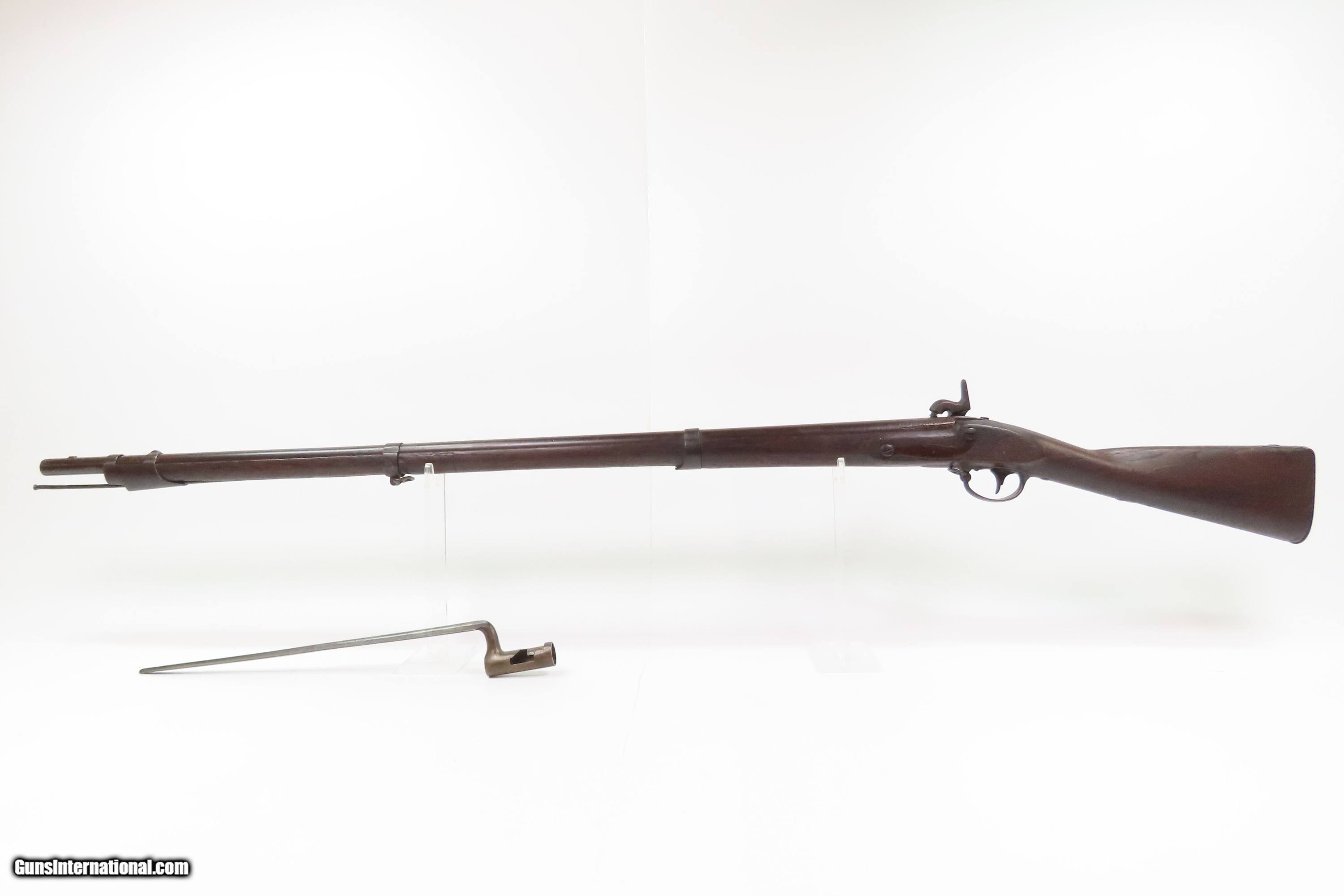

Here we present an antique Springfield U.S. Model 1816 Conversion Musket, manufactured at the armory at Springfield, Massachusetts, circa 1834. This musket would have started out life as a smoothbore flintlock and likely converted around the start of the American Civil War. The War of 1812 revealed many weaknesses in American muskets. In an attempt to improve both the design and manufacture of the musket, the Model 1812 musket was created. The Model 1816 made further improvements and replaced the Model 1812. Harpers Ferry became America’s second national armory after the site was personally selected by George Washington, with the Springfield Armory being the first. The U.S. Congress authorized the building of the new foundry in 1794, and by the following year, was producing hundreds of arms for the national army, which was primarily flintlock muskets and pistols. Inspired largely by the French Charleville Model 1777 musket, Harpers Ferry began producing the Model 1816. The M1816 was a smoothbore, muzzle loading weapon which used a .69 caliber musket ball. A trained shooter could fire between two and three rounds at a range of up to 200 yards per minute.

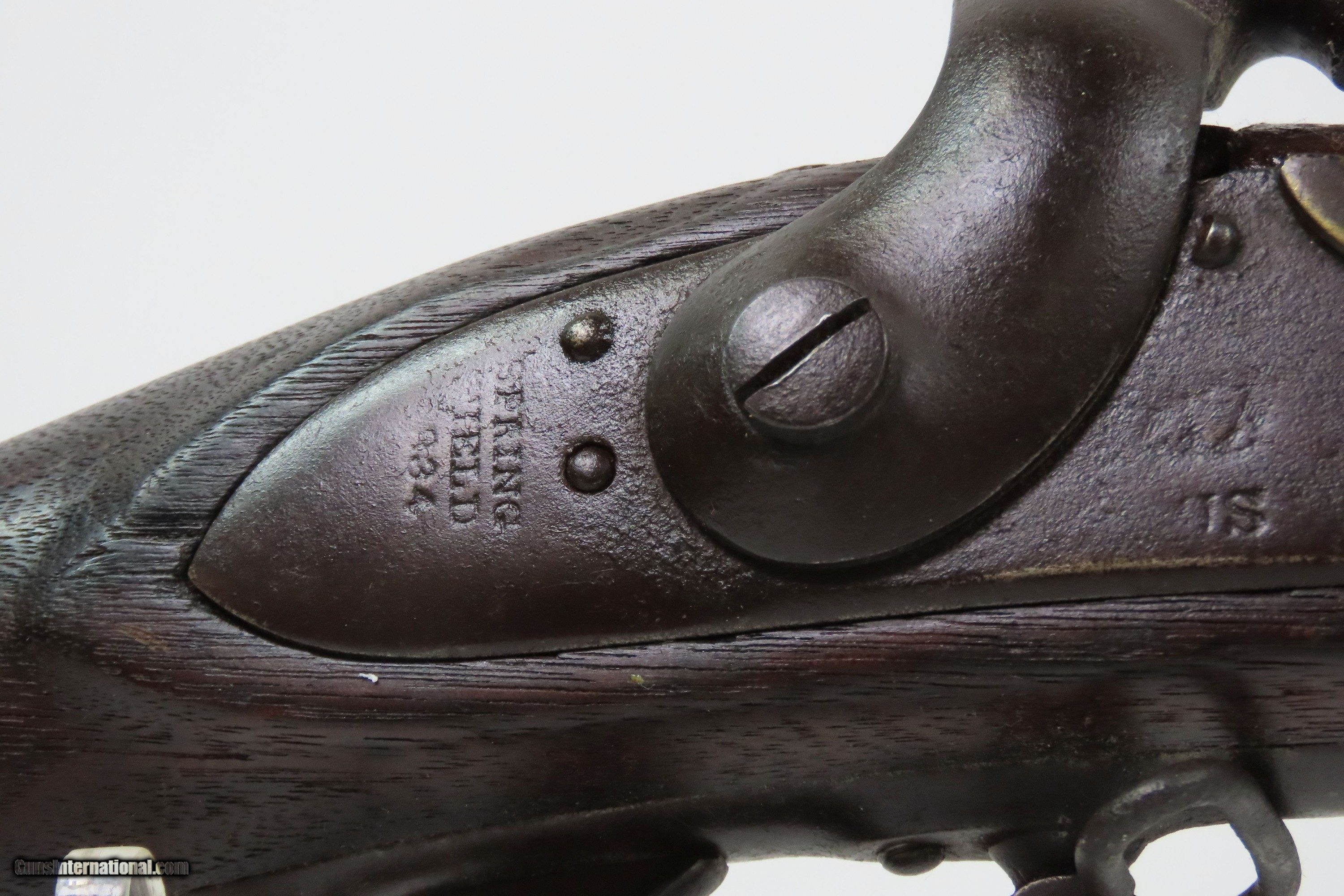

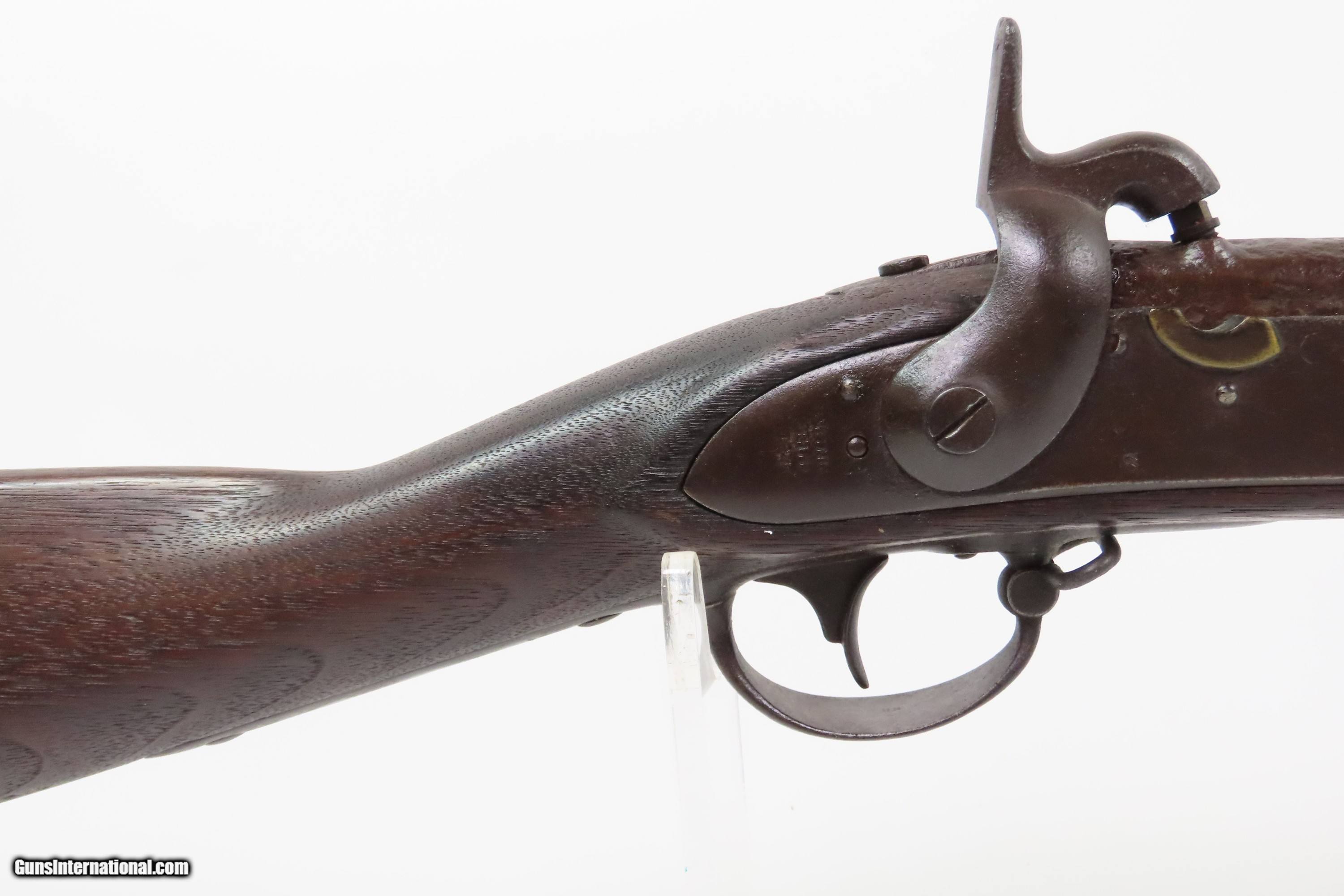

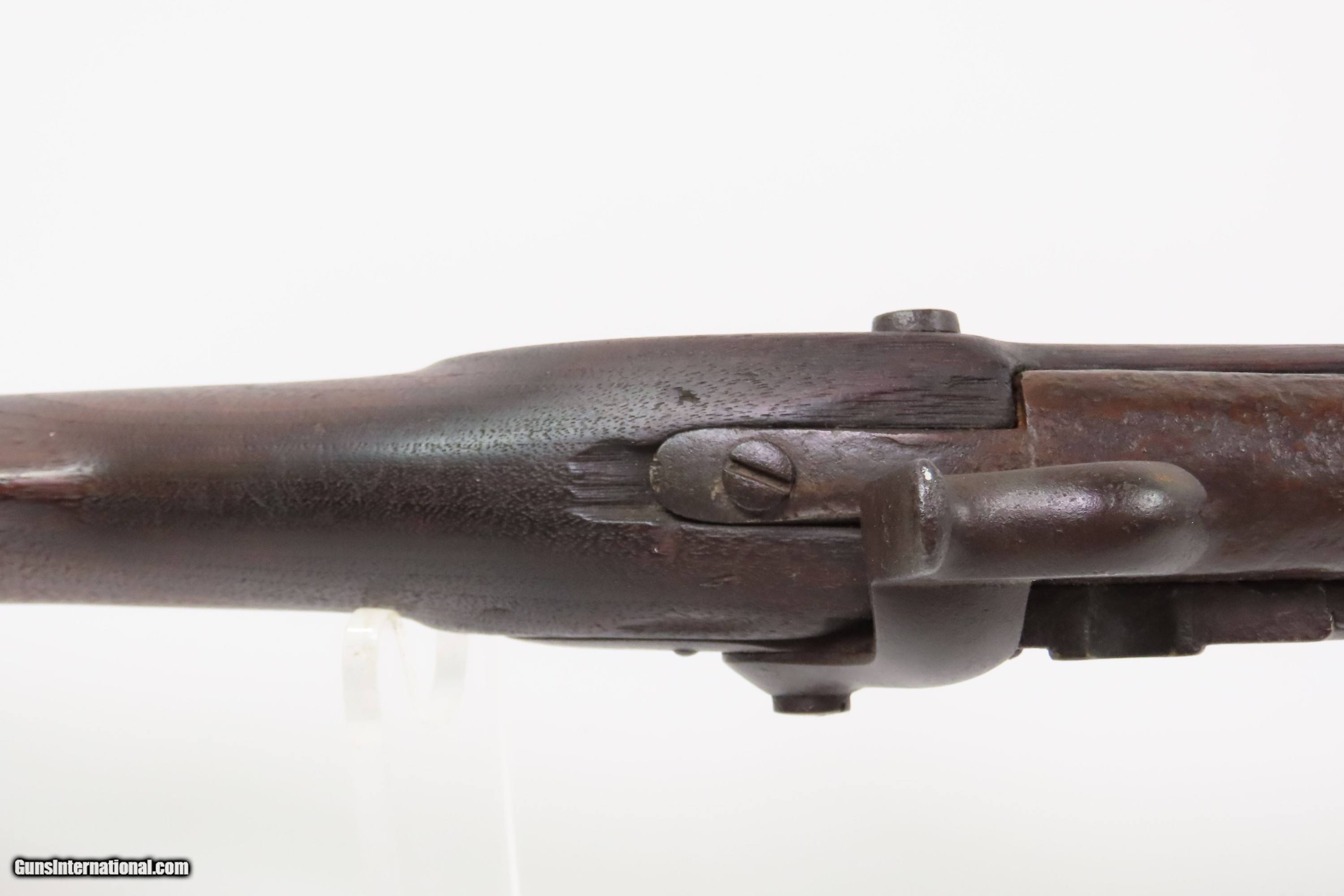

This musket was converted to percussion using the Belgian Style Alteration method, more commonly known as the “Cone Type” conversion. All external lock parts were removed with the screw hole plugged, the pan ground flush with lock plate (leaving the remnants intact) and the small existing cavity in the pan filled with brass to give it a level or squared off profile along the top. The vent hole of the barrel was plugged with a nipple screwed into the threaded receptacle at the top of the barrel, set off center towards the lock side. Then, adding the distinctive arsenal military hammer.

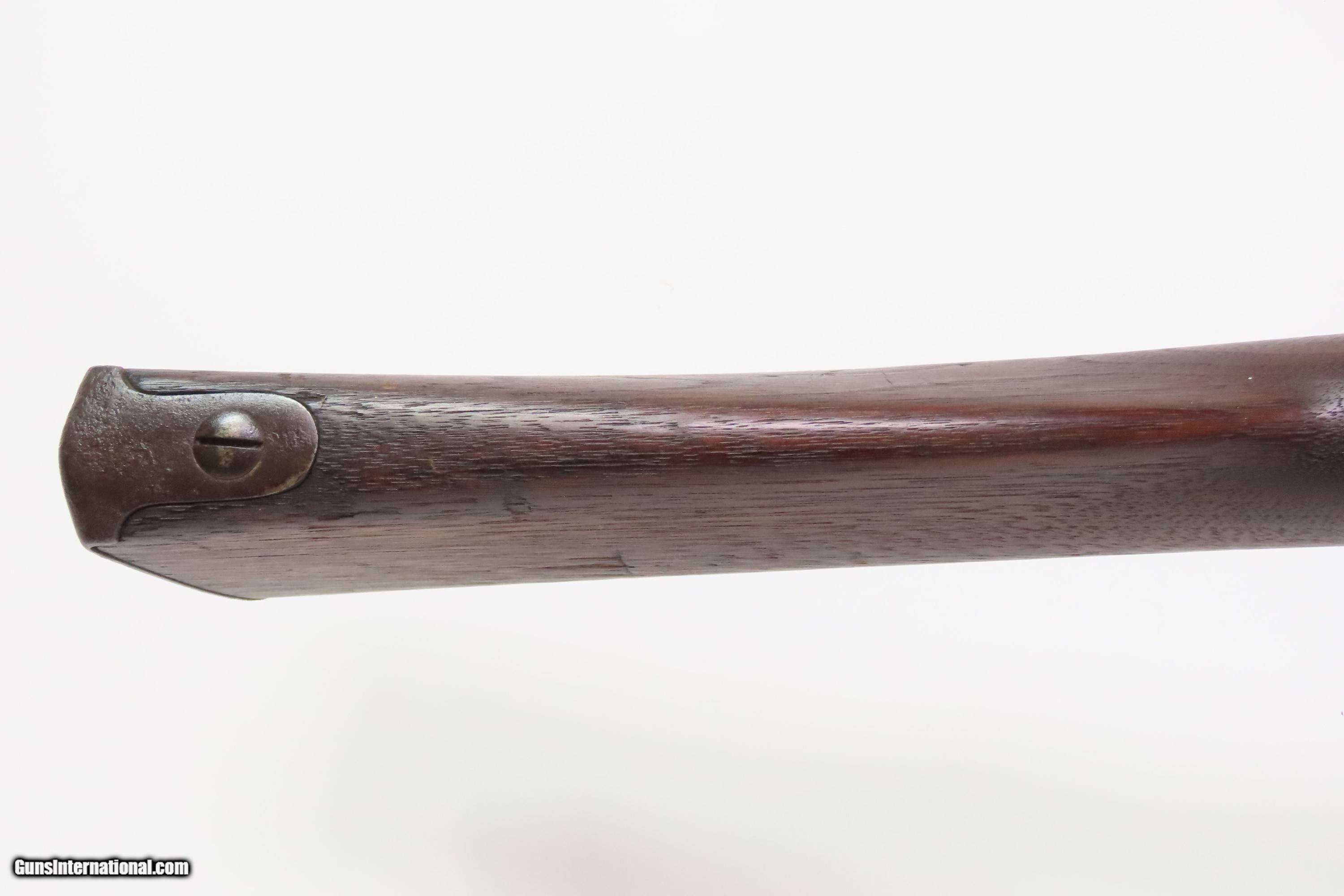

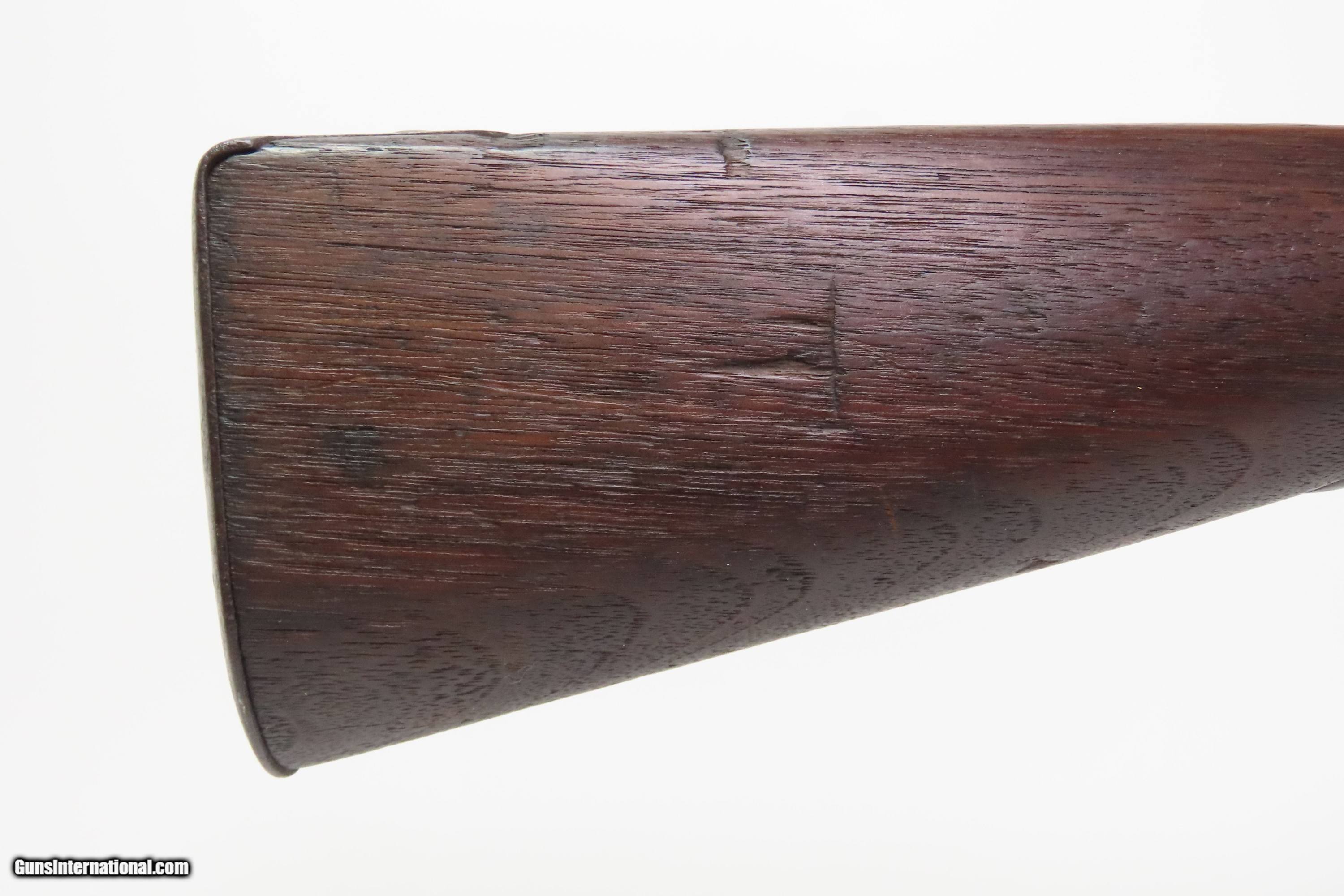

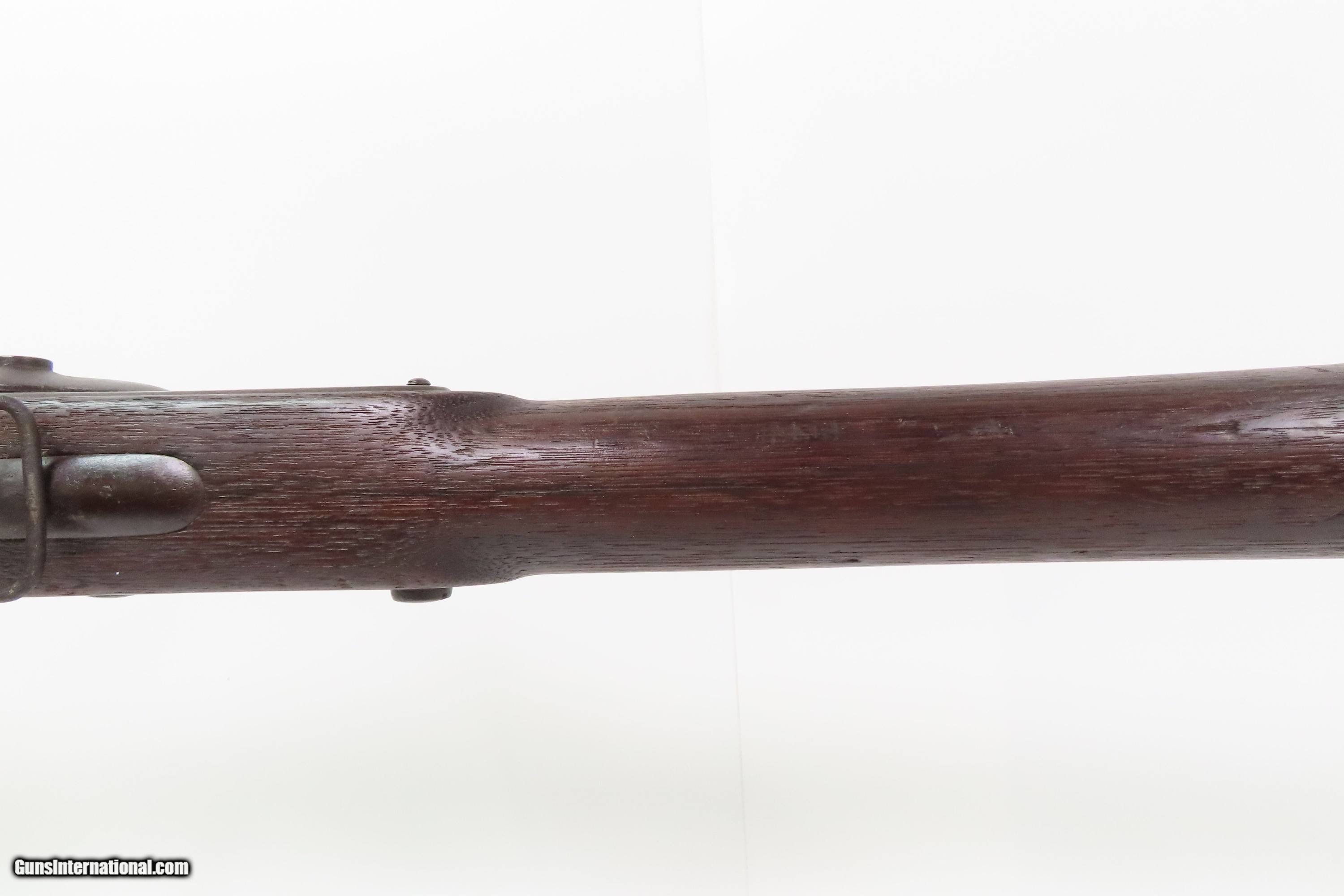

The overall condition is good. Nice, original brown patina. Strong action. The bore is in good shape for its age. This example sports a solid stock with less than average wear. Cartouche remnants can be seen on the left stock flat. Worn, but legible markings. Good bayonet.

Own the original! This is a legitimate antique and not a reproduction.

Barrel is 42 inches.

Caliber: .69 Percussion

Overall condition as seen in photos.

Very Fast. Very Safe. FREE SHIPPING WORLDWIDE. Delivered directly to your door by express mail!

Guaranteed AUTHENTIC & Includes CERTIFICATE OF AUTHENTICITY.

ancestryguns

$1800

#251106


Antique: Yes

Price: $1,800.00
