Antique US SPRINGFIELD ARMORY Model 1816 Percussion CONE Conversion Musket Converted Flintlock to Percussion U.S. Military Weapon

Description:
Antique US SPRINGFIELD ARMORY Model 1816 Percussion CONE Conversion Musket

Converted Flintlock to Percussion U.S. Military Weapon

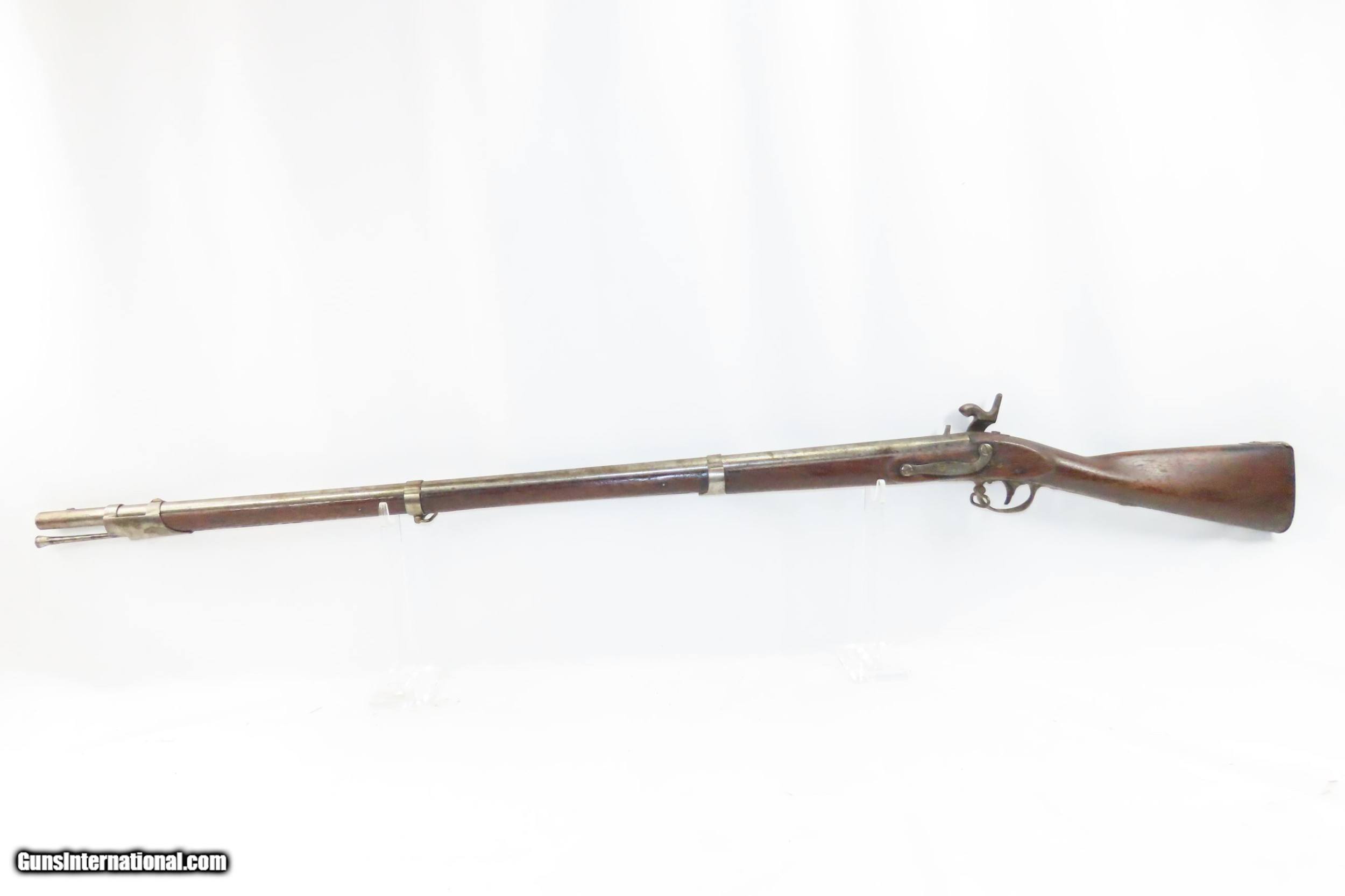

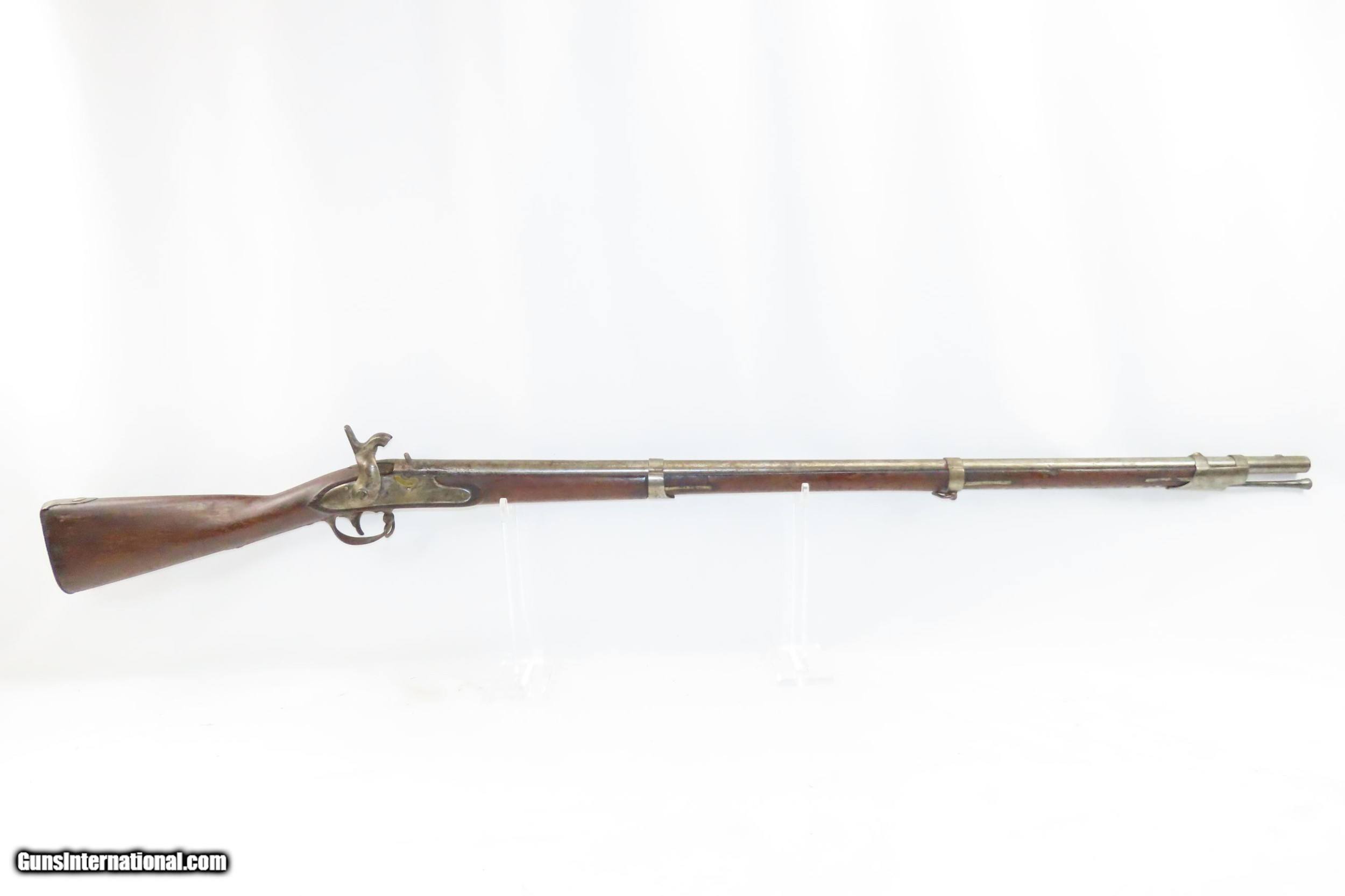

Here we present an antique Springfield U.S. Model 1816 Conversion Musket, manufactured at the armory at Springfield, Massachusetts, circa 1837. This musket would have started out life as a smoothbore flintlock and likely converted around the start of the American Civil War.

The advent of the Model 1842 Musket made the M1816 obsolete, but not unserviceable. Eventually, most made their way to storehouses and armories. Beginning in 1848, when more than 700,000 of all types of flintlock muskets were reported in storage, the most serviceable were converted to percussion ignition. Three types of alteration were performed. All alterations involved grinding the flash pan down and replacing the hammer. The "French Style" conversion added a drum and nipple to the flash hole. The "Belgian Style" involved plugging the vent hole with a weld and tapping a nipple directly into the barrel. This is the type of conversion that was only done at Harper's Ferry and Springfield and is sometimes referred to as an "armory conversion." The last type of conversion was used late in the renovation process, beginning about 1852, and involved adding a bolster to the breech of the barrel, so it is termed the "Bolster Style" of conversion.

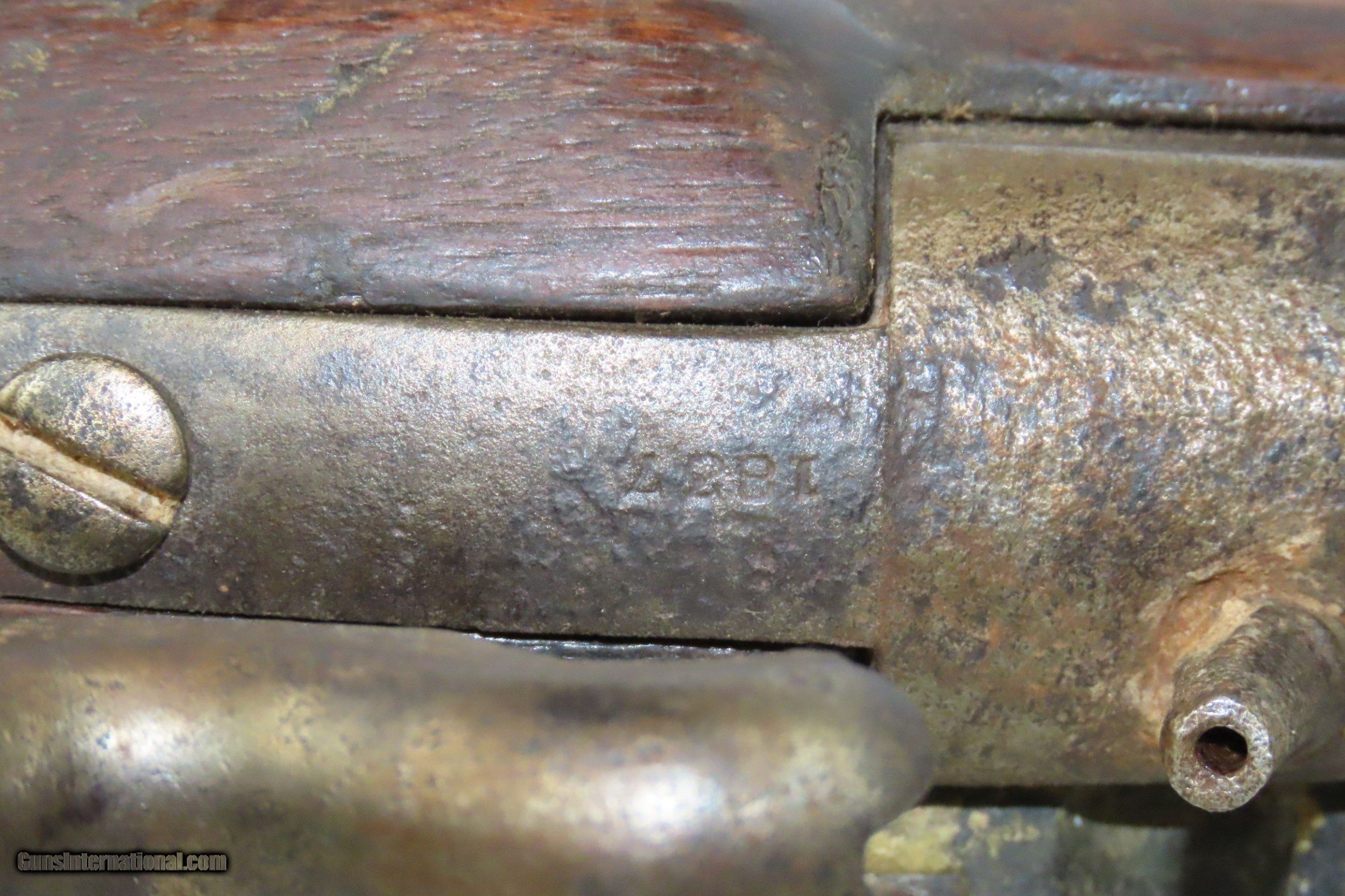

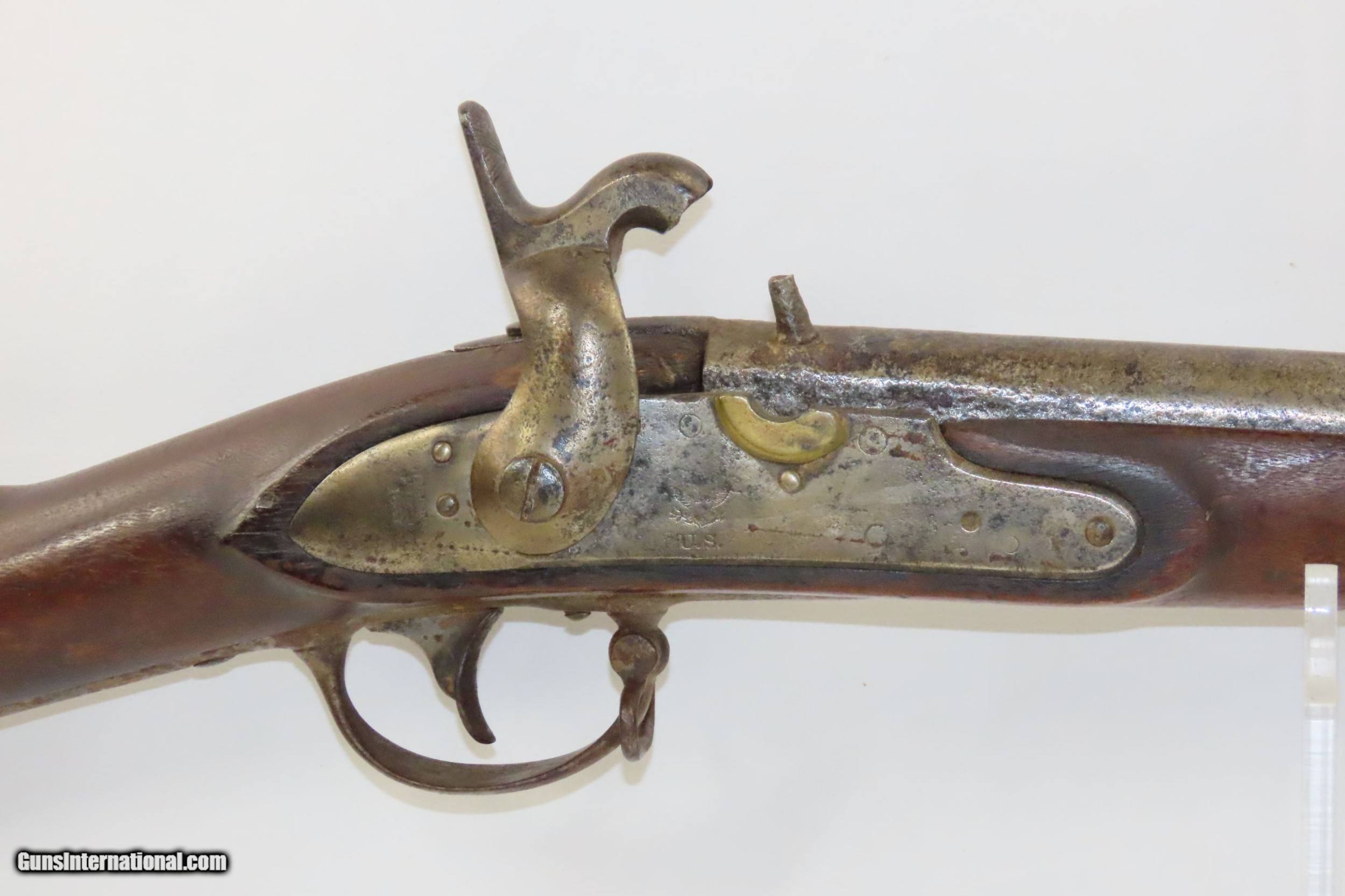

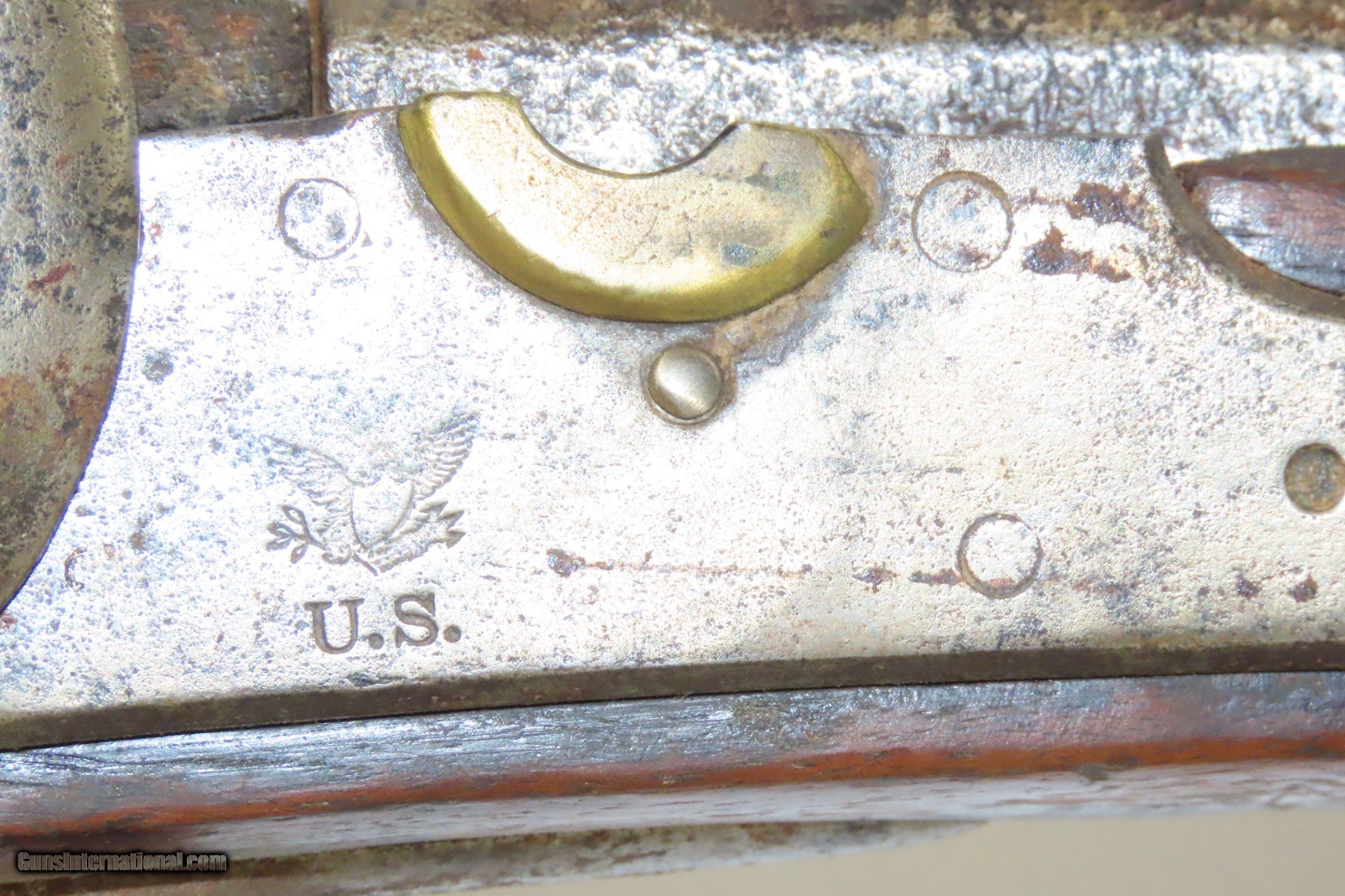

This musket was converted to percussion using the Belgian Style Alteration method, more commonly known as the “Cone Type” conversion. All external lock parts were removed with the screw hole plugged, the pan ground flush with lock plate (leaving the remnants intact) and the small existing cavity in the pan filled with brass to give it a level or squared off profile along the top. The vent hole of the barrel was plugged with a nipple screwed into the threaded receptacle at the top of the barrel, set off center towards the lock side. Then, adding the distinctive arsenal military hammer.

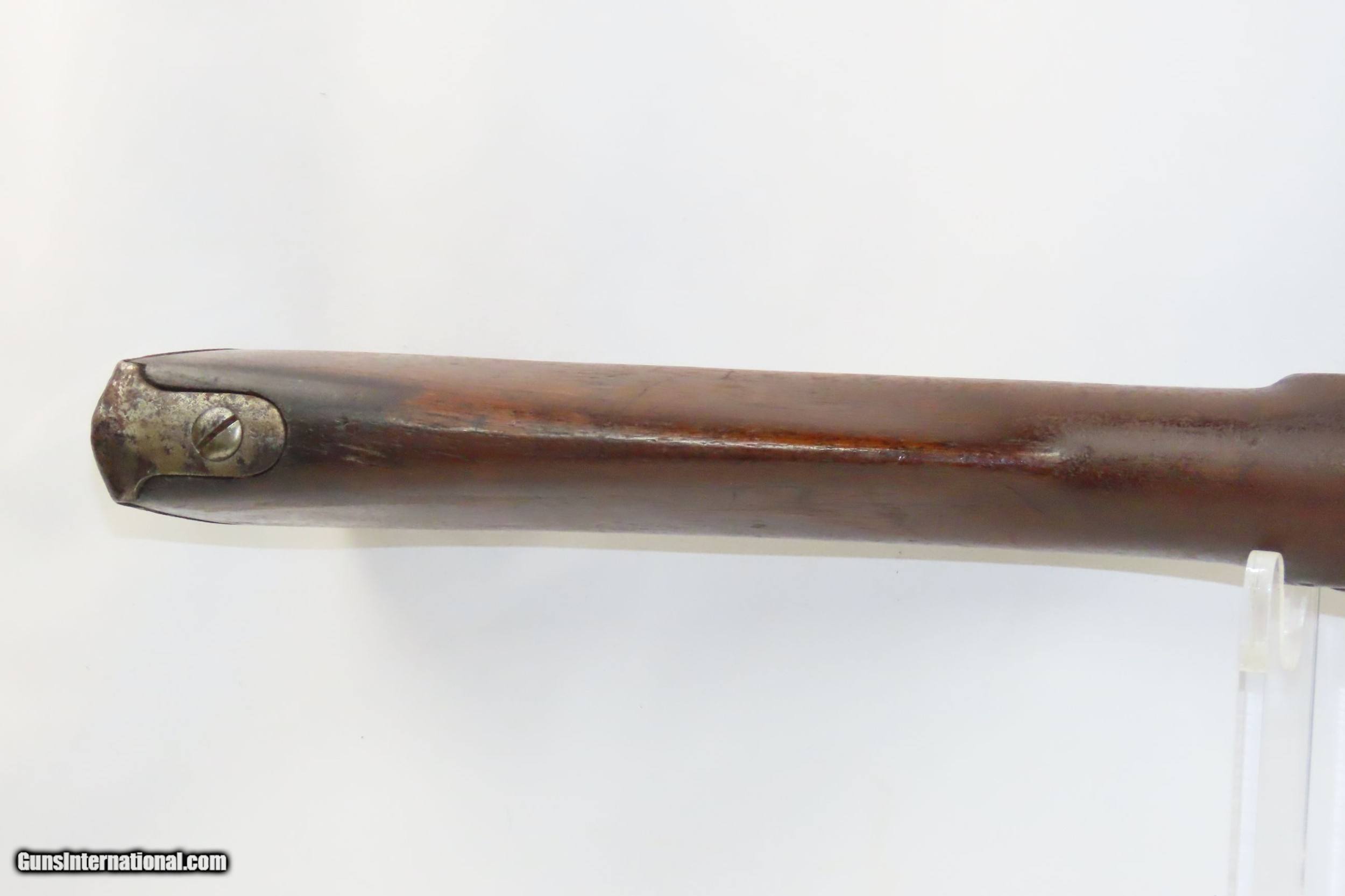

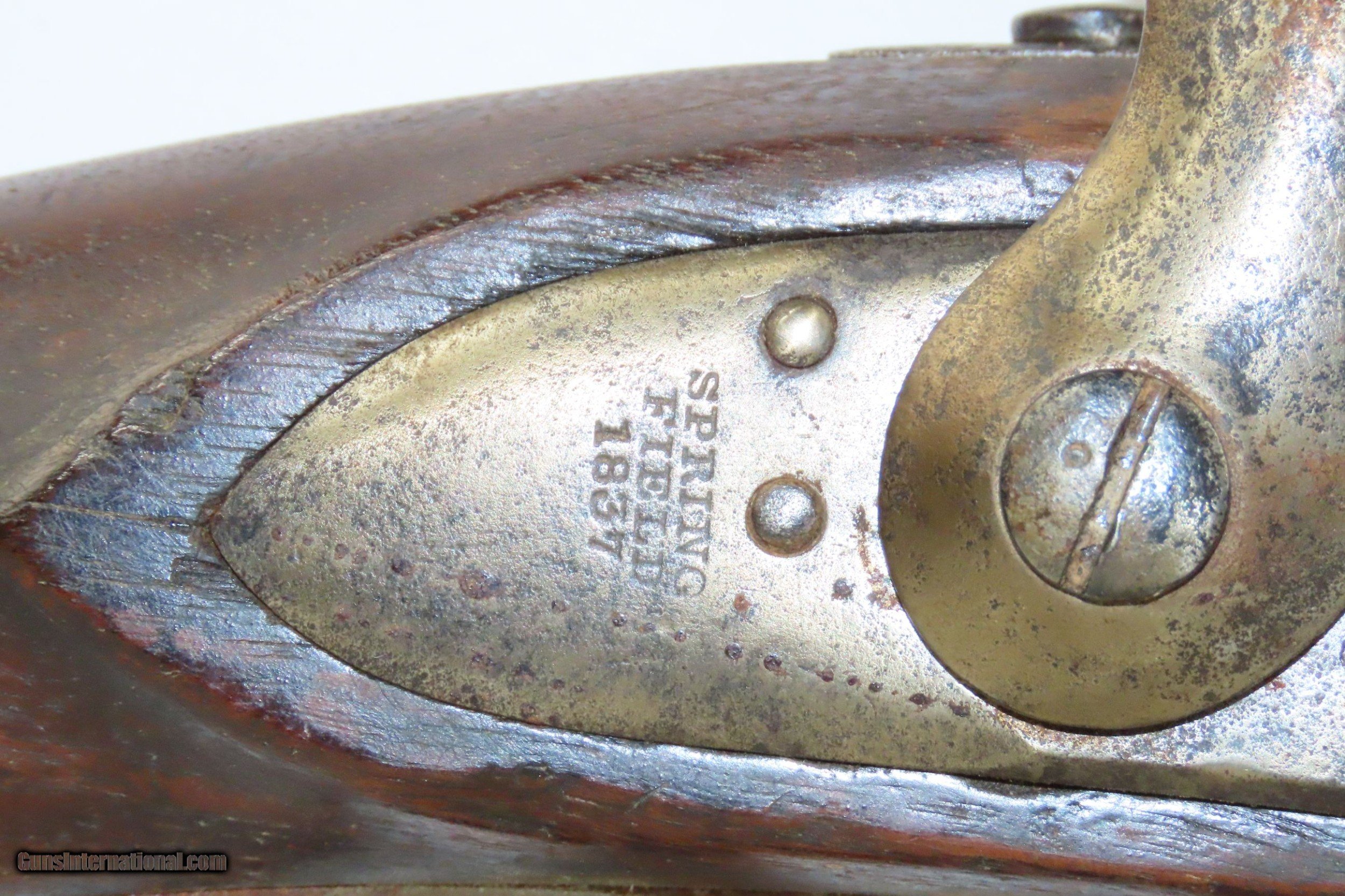

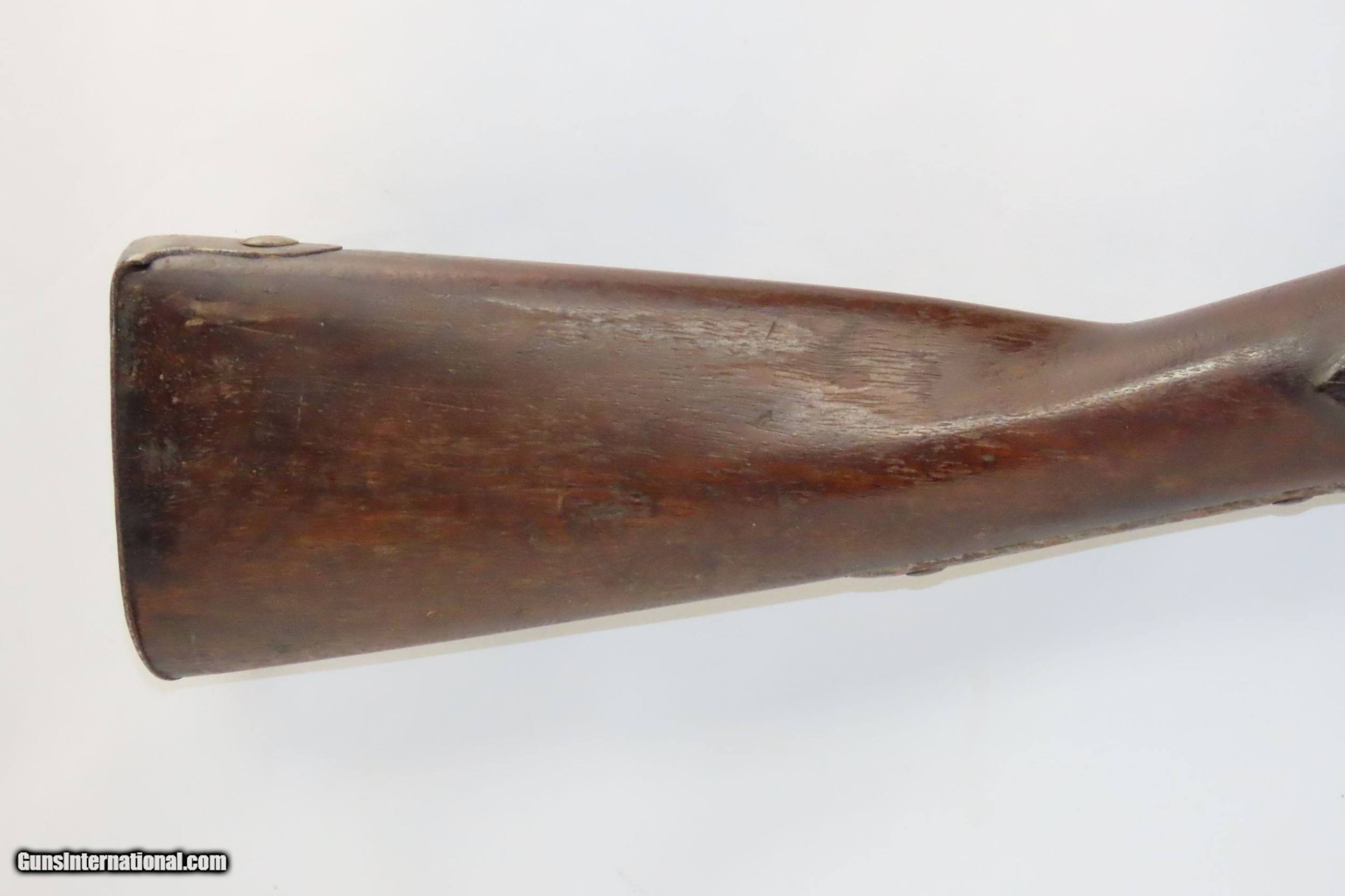

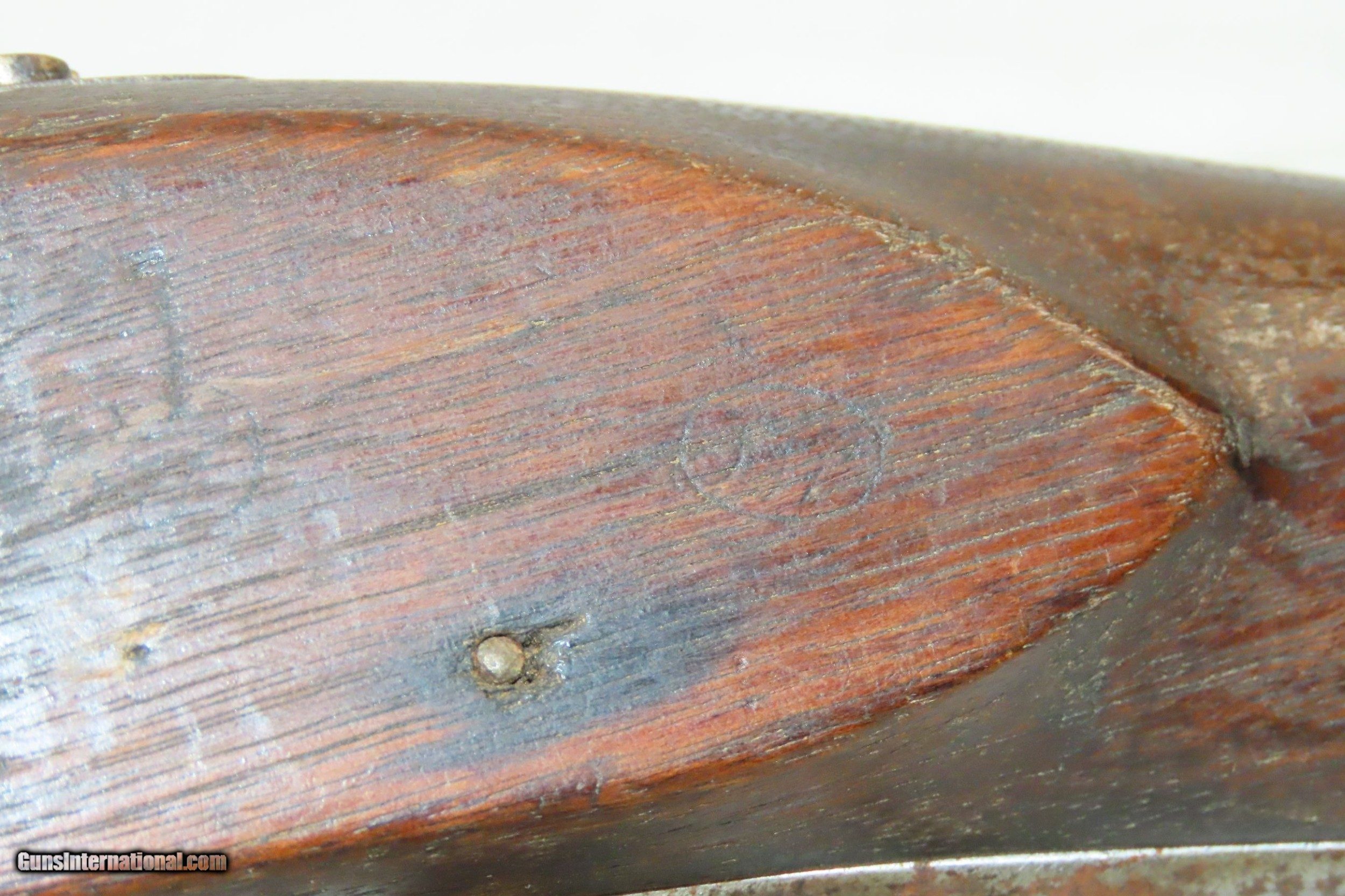

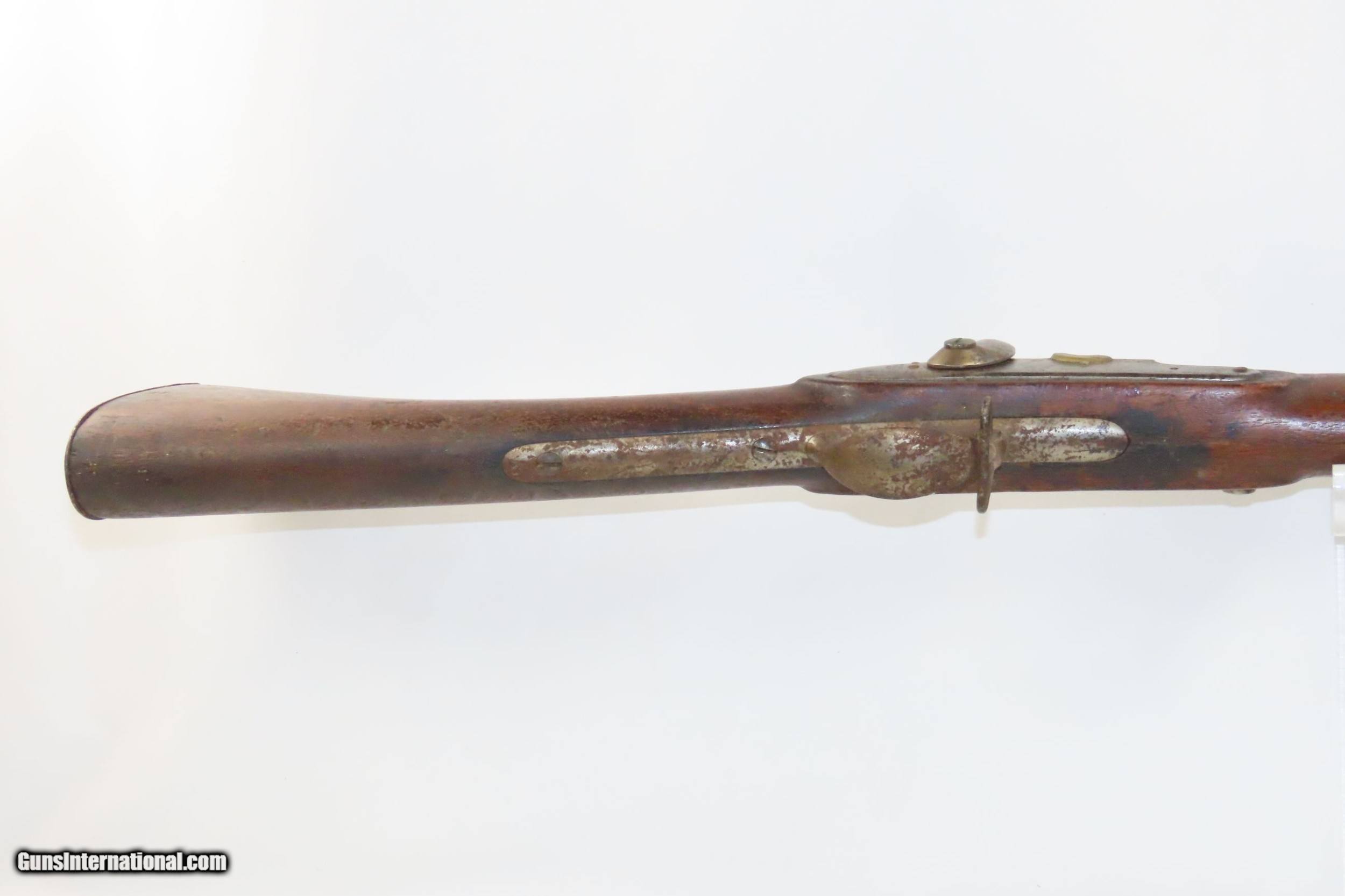

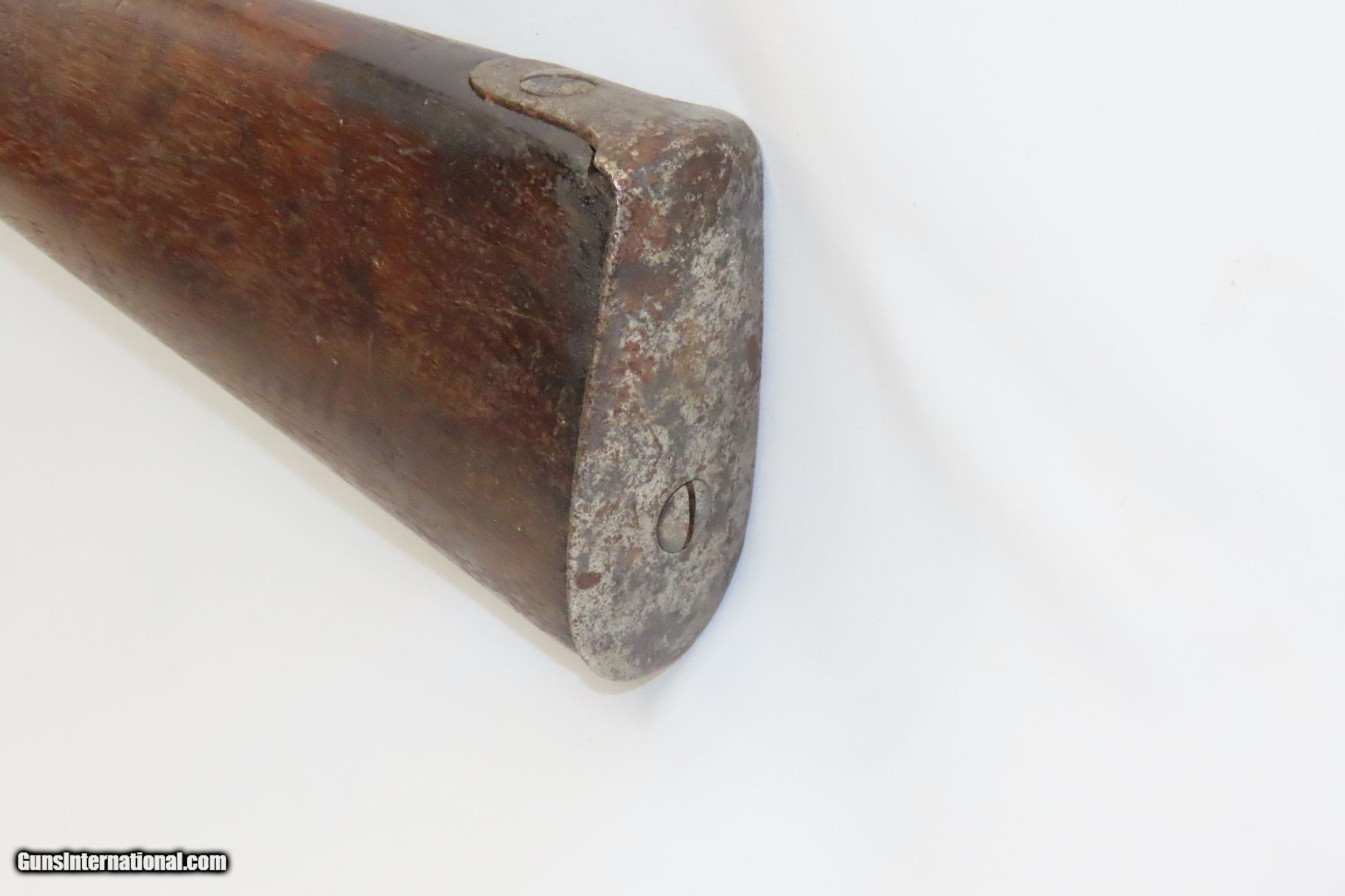

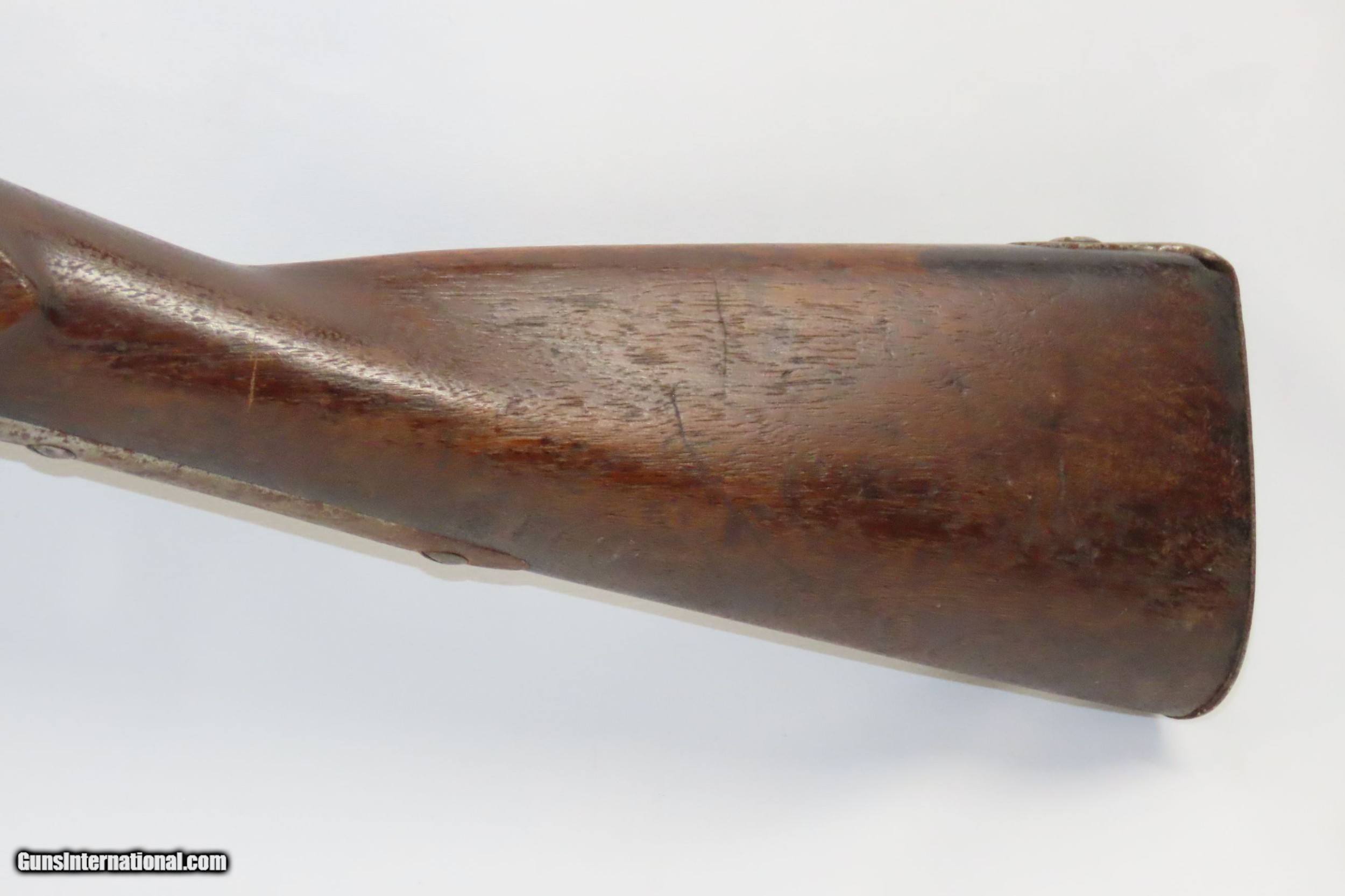

This example has been around the block a time of two. The action does not function—the trigger will not drop the hammer. The bore is caked in dust and untouched. Solid walnut stock with an above average amount of wear. “1837” dated lock. “US” stamped lock and butt plate. Cartouche remnants can be seen on the left stock flat.

Own the original! This is a legitimate antique and not a reproduction.

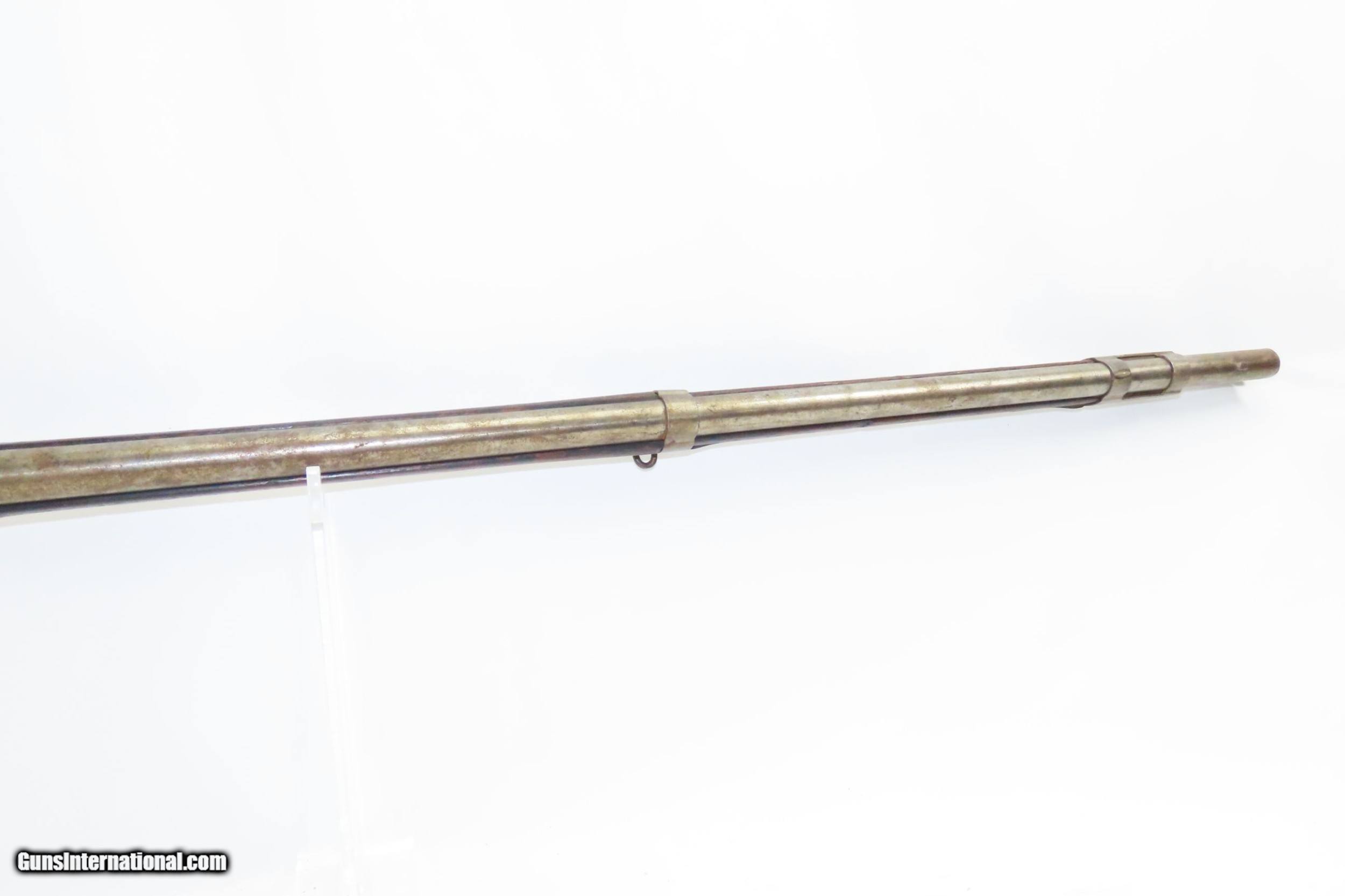

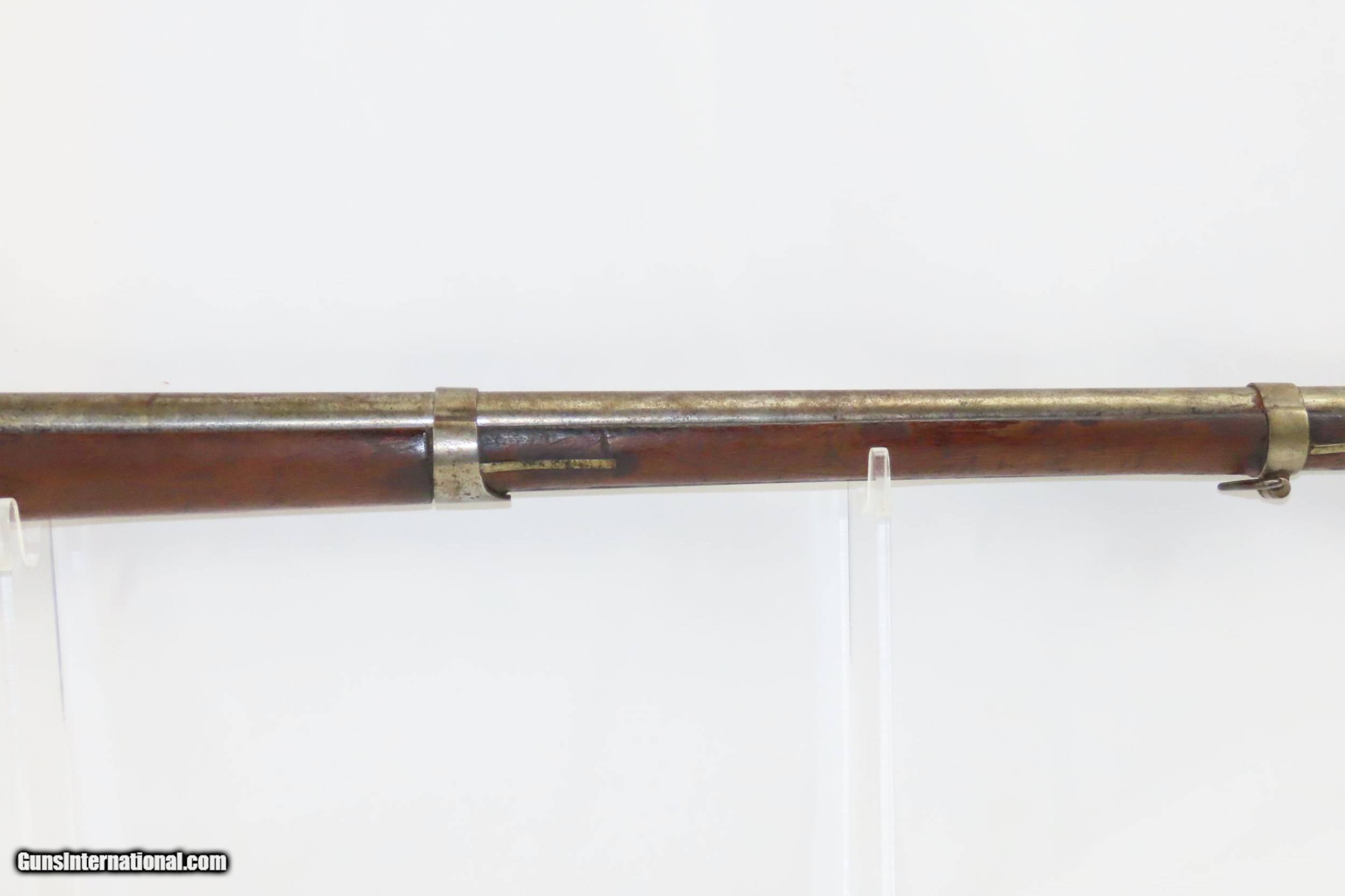

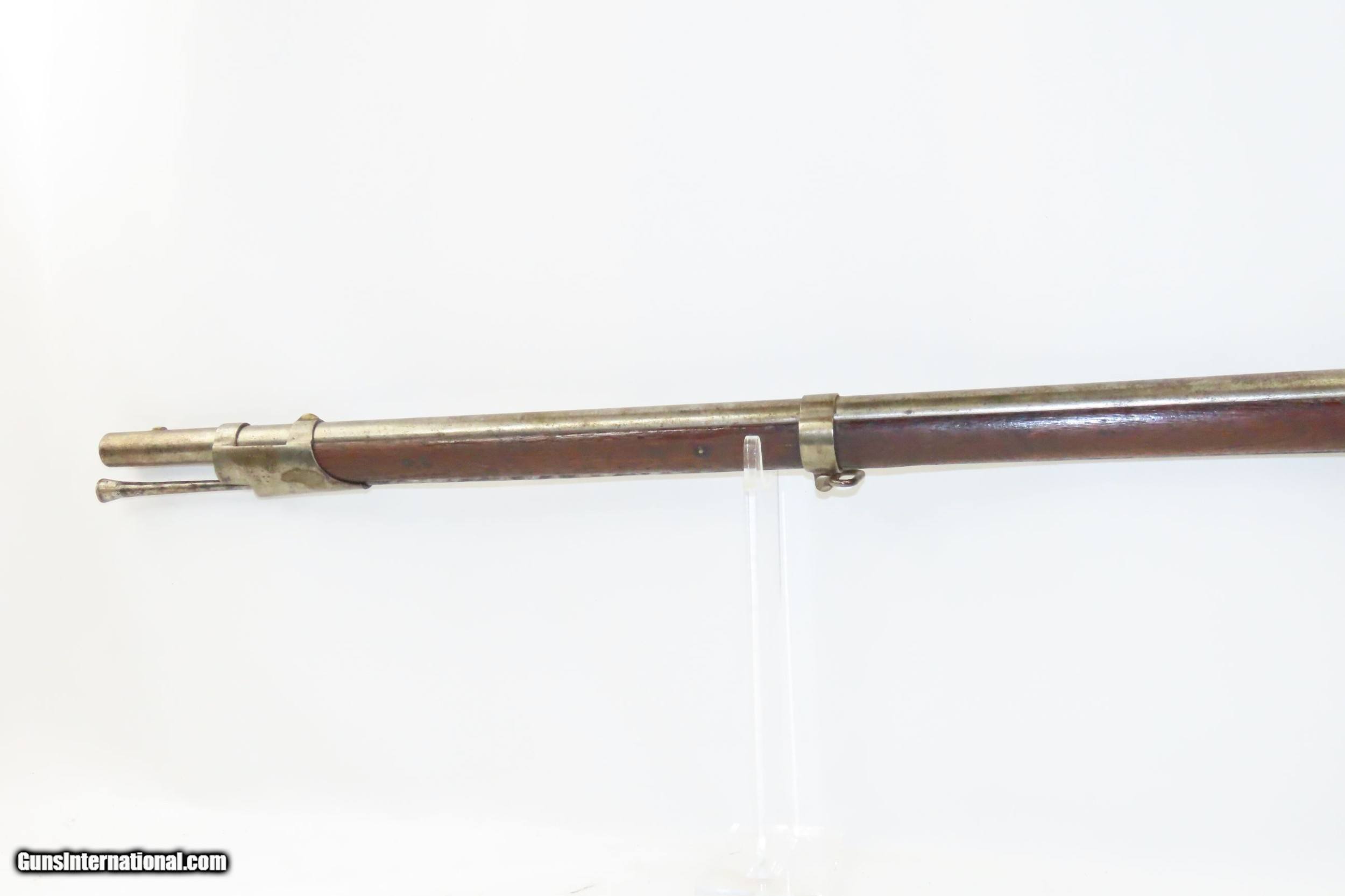

Barrel is 42 inches.

Caliber: .69 Percussion

Overall condition as seen in photos.

Very Fast. Very Safe. FREE SHIPPING WORLDWIDE. Delivered directly to your door by express mail!
Guaranteed AUTHENTIC & Includes CERTIFICATE OF AUTHENTICITY.

ancestryguns

$1400

#217034


SOLD

Antique: Yes
